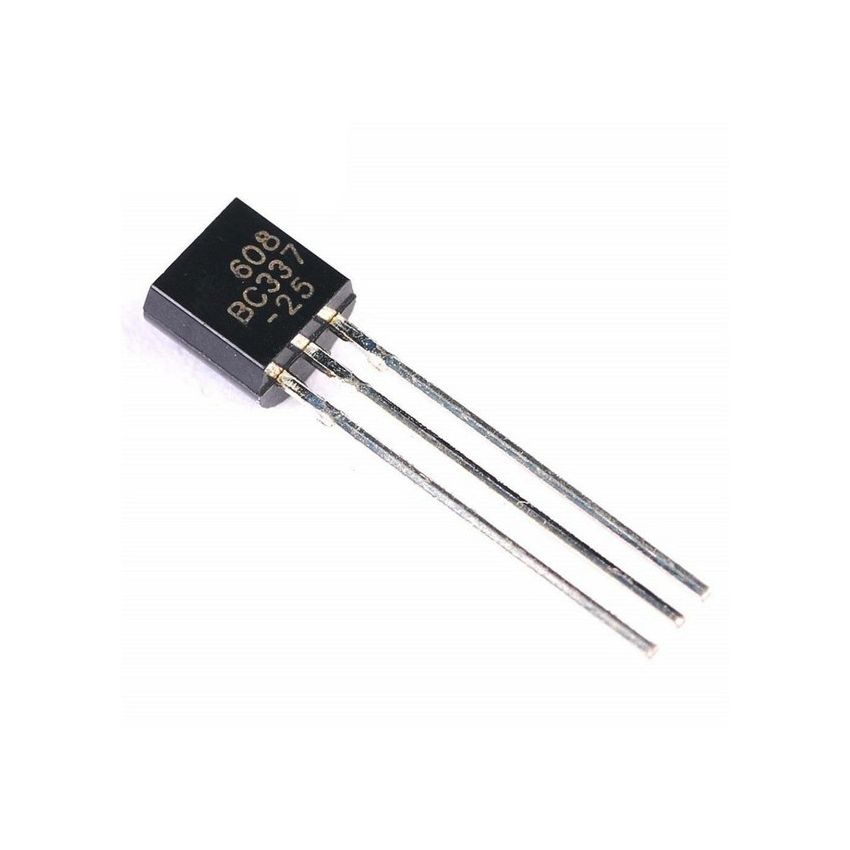

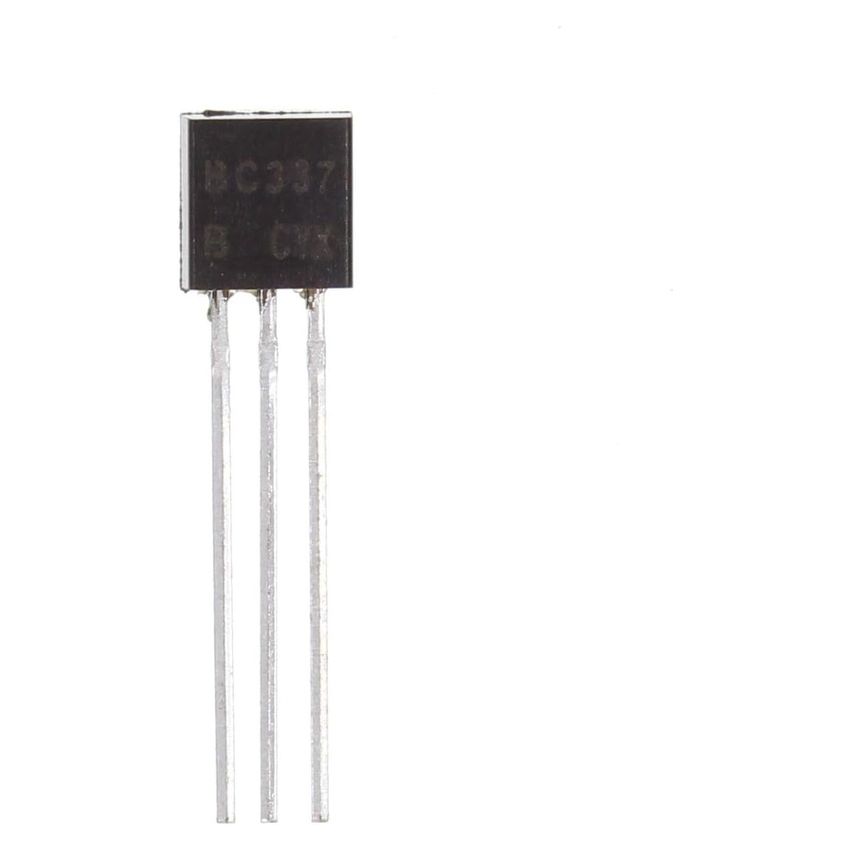

BC337, NPN General-Purpose Transistor, TO-92

Complementary Pairing: Designed to work with PNP counterparts like the BC327 for push-pull amplifier configurations.

Key Features:

• High Current Gain: Offers a DC current gain (hFE) ranging from 100 to 630, suitable for amplification needs.
• Moderate Voltage Rating: Withstands collector-emitter voltages up to 45V, accommodating various circuit requirements.
• High Collector Current: Supports continuous collector currents up to 800mA, enabling control of moderate loads.
• Low Saturation Voltage: Ensures efficient switching with a collector-emitter saturation voltage typically around 0.7V at 500mA.
• Compact TO-92 Package: Facilitates easy integration into through-hole designs and prototyping setups.
• Complementary Pairing: Designed to work with PNP counterparts like the BC327 for push-pull amplifier configurations.

Additional Specifications:

• Type: NPN
• Max Voltage: 45V
• Max Current: 800mA
