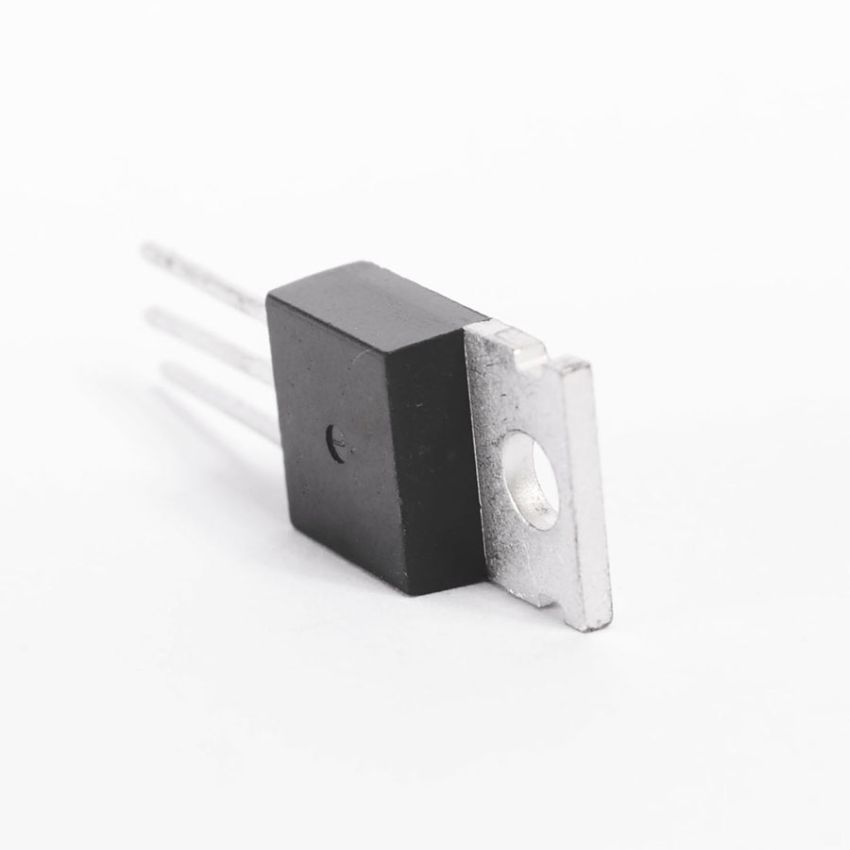

2N6489 ,NPN Power Transistor - 15A, 80V, TO-220

The 2N6489 is a high-power NPN silicon transistor designed for general-purpose amplifier and switching applications. With a maximum collector current of 15A and a collector-emitter voltage of 80V, this transistor is ideal for circuits requiring high efficiency and reliability. Its robust TO-220 package ensures efficient heat dissipation, making it suitable for high-power applications.

Key Features :

• High maximum collector current of 15A for demanding applications.
• Collector-emitter voltage up to 80V for high-voltage circuits.
• Robust TO-220 package for efficient heat dissipation.
• Wide operating temperature range: -55C to +150C.
• High DC current gain (hFE) of 20–150 for superior amplification.
• Power dissipation capacity of 75W for high-power designs.
