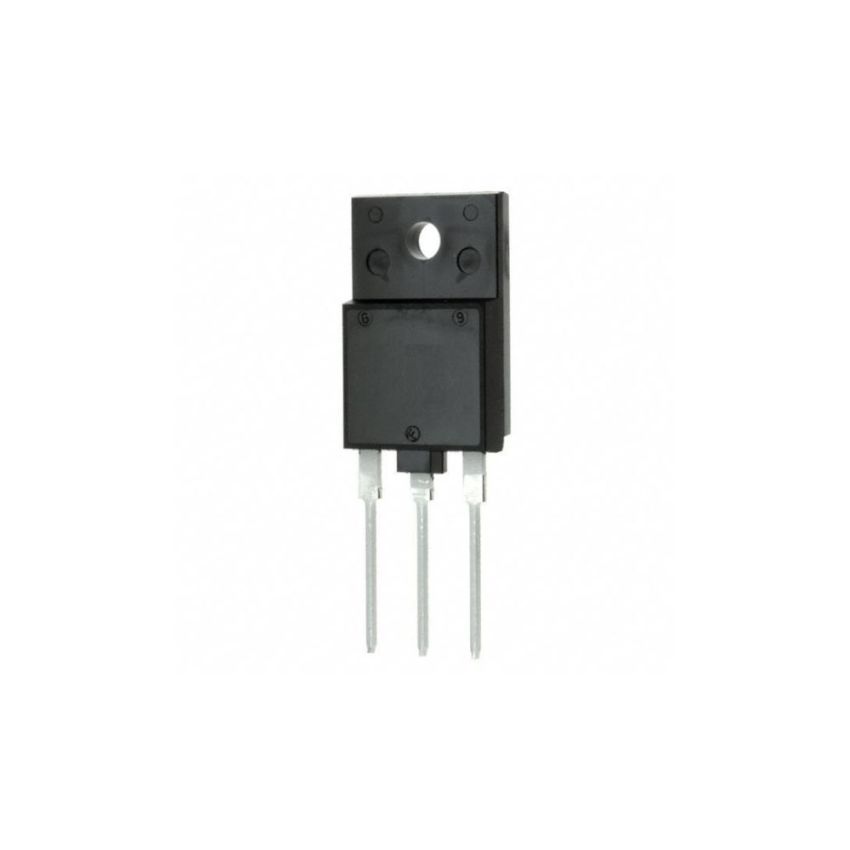

2SD1632, NPN Power Transistor with Built-in Damper Diode, TO-3PFa

The 2SD1632 is a high-voltage NPN power transistor designed for horizontal deflection output applications. It features a high collector-base voltage of 1500 V and a collector-emitter voltage of 1300 V, with a collector current capacity of 4 A. The transistor offers high-speed switching capabilities and includes a built-in damper diode, enhancing its performance in deflection circuits. Its wide area of safe operation ensures reliable performance across various operating conditions. Encased in a TO-3PFa package, the 2SD1632 provides reliable thermal performance, ensuring durability in demanding environments.

• High Breakdown Voltage: Collector-Base Voltage (V_CBO) of 1500 V, suitable for high-voltage applications.
• High Collector-Emitter Voltage: Rated at 1300 V, ensuring robust performance.
• High Collector Current: Supports up to 4 A, ideal for power-intensive operations.
• Built-in Damper Diode: Enhances performance in horizontal deflection output applications.
• High-Speed Switching: Optimized for rapid switching applications.
• Wide Area of Safe Operation (ASO): Provides reliable performance across various operating conditions.
