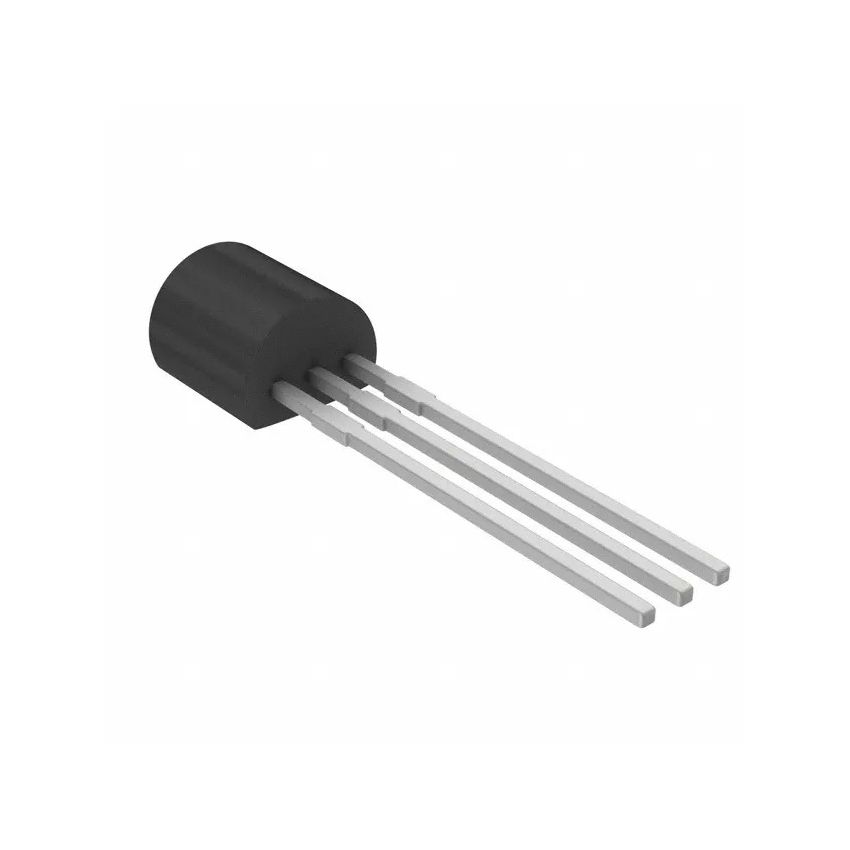

2SC1359 ,NPN Transistor, TO-92 Package, 30V Max Voltage

The 2SC1359 NPN Transistor is a reliable and efficient electronic component, designed specifically for RF amplification in FM/AM radios and high-frequency oscillator circuits. Encased in a compact TO-92 package, it offers excellent thermal stability and high transition frequency for precision signal amplification. With a maximum voltage rating of 30V and a collector current of up to 30mA, this transistor is ideal for low-power, high-frequency applications.

Its wire-leaded design ensures compatibility with through-hole mounting techniques, making it easy to integrate into a variety of electronic circuits. The 2SC1359 features a high transition frequency of 150MHz, enabling superior performance in RF amplification and signal processing. It is also designed to operate within a wide temperature range, providing reliable performance even in challenging conditions.

Whether you're building radio receivers, oscillators, or other RF applications, the 2SC1359 ensures reliable performance and long-term durability.

.Key Features :

• High Voltage Capability: Handles up to 30V Collector-Base Voltage (VCBO) and 20V Collector-Emitter Voltage (VCEO).
• Compact Design: Encased in a TO-92 package, suitable for through-hole PCB mounting.
• High Transition Frequency: Operates at frequencies up to 150MHz, ideal for RF applications.
• Efficient Power Dissipation: Supports up to 400mW power dissipation, ensuring reliable operation.
• Stable Current Handling: Maximum collector current of 30mA for consistent performance.
• Wide Temperature Range: Operates reliably from -55C to +150C, ensuring stability in various environments.
