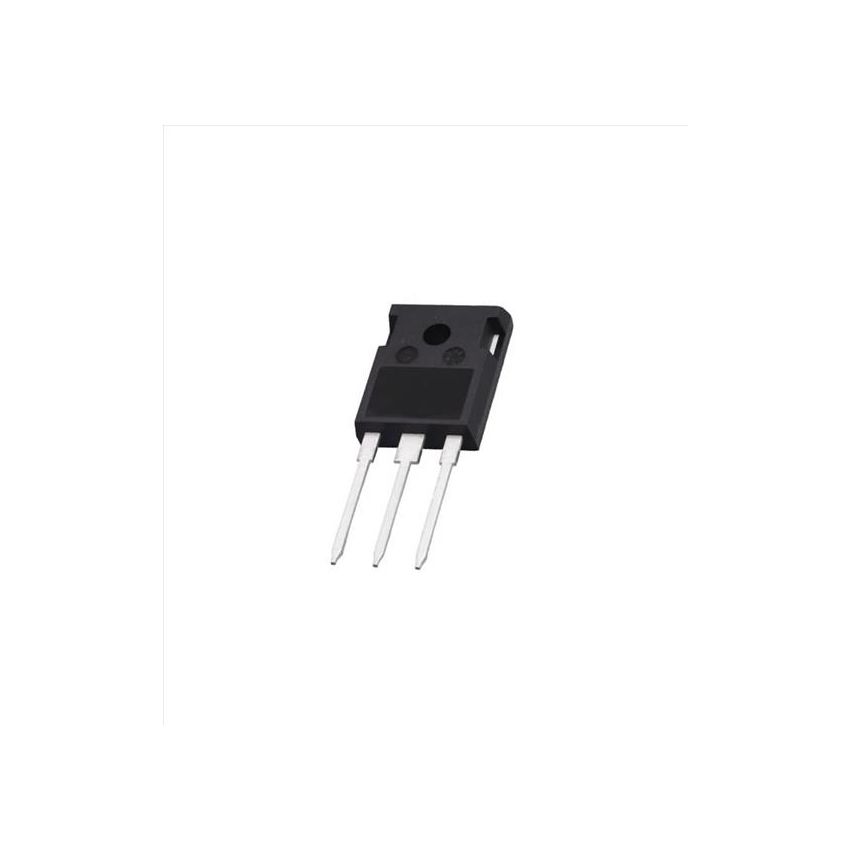

2SC3261 ,NPN Power Transistor, 200V, 15A, High Power Audio and Switching Applications

The 2SC3261 is a high-power NPN silicon power transistor designed for general-purpose amplifier and switching applications. With a maximum collector-emitter voltage of 200V and a continuous collector current of 15A, this transistor is ideal for high-fidelity audio amplifiers and high-speed switching circuits. Its TO-247 package ensures excellent thermal management, making it highly suitable for demanding environments. With a power dissipation of up to 150W, this component ensures reliable operation in a variety of industrial and electronic applications.

The 2SC3261 transistor features a low collector-emitter saturation voltage for efficient performance, a transition frequency of 10 MHz for high-frequency applications, and a robust construction for enhanced reliability. It is widely used in audio amplifiers, DC-DC converters, and motor control systems. The combination of its rugged design and performance parameters makes the 2SC3261 an excellent choice for engineers and hobbyists alike.

Key Features :

• MOSPEC
• High Voltage and Current Handling: Supports a maximum collector-emitter voltage of 200V and a continuous collector current of 15A.
• Thermal Efficiency: Equipped with a TO-247 package with a thermal resistance of 0.83C/W for optimal heat dissipation.
• Wide Operating Temperature Range: Operates reliably from -55C to 150C, suitable for industrial applications.
• High Power Dissipation: Rated for a total power dissipation of 150W, ensuring excellent durability.
• High-Frequency Operation: Transition frequency of 10 MHz enables applications in high-speed circuits.
