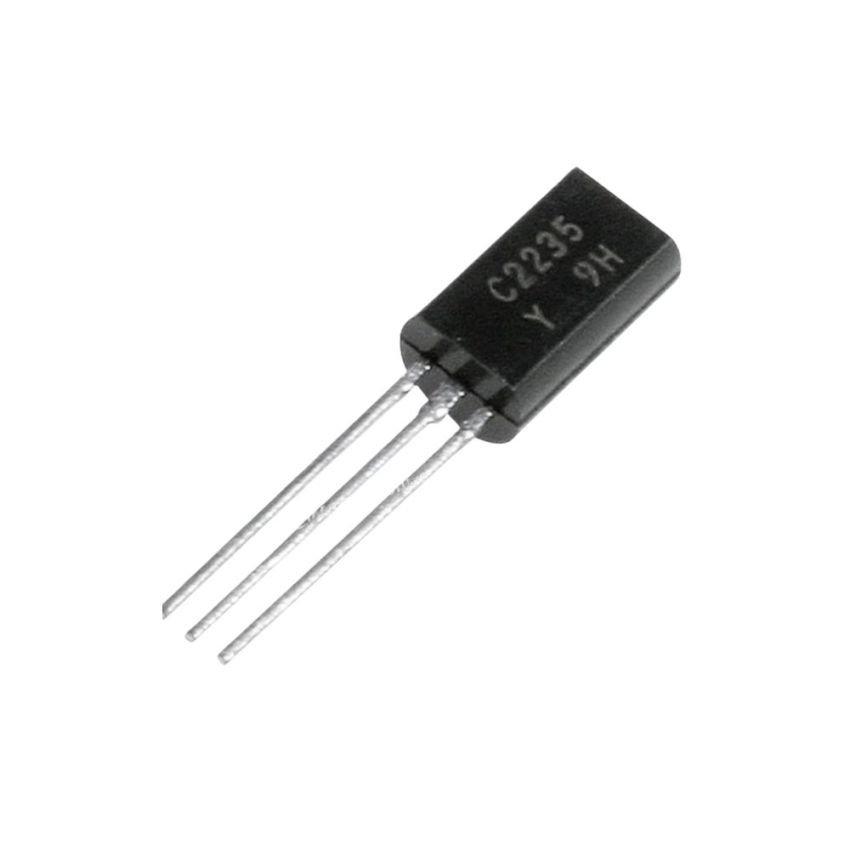

2SC2235, NPN Silicon Epitaxial Transistor, TO-92MOD Package

The 2SC2235 is an NPN silicon epitaxial transistor housed in a compact TO-92MOD package. It is designed for audio power amplifier and driver stage amplifier applications, capable of handling a collector current up to 800 mA. The transistor features a high collector-emitter voltage of 120 V and a high DC current gain ranging from 80 to 240, providing effective signal amplification. Its low collector-emitter saturation voltage ensures efficient operation with minimal power loss. The 2SC2235 is designed to complement PNP transistors such as the 2SA965, facilitating the creation of push-pull amplifier configurations. The device is optimized for medium power applications, making it ideal for audio equipment and other electronic devices.

• High Collector-Emitter Voltage: Withstands up to 120 V, suitable for various applications.
• Moderate Collector Current: Supports up to 800 mA, ideal for medium power requirements.
• High DC Current Gain: Offers a gain (h_FE) range of 80 to 240, ensuring efficient amplification.
• Low Collector-Emitter Saturation Voltage: Ensures efficient operation with minimal voltage drop.
• Complementary Pairing: Designed to complement PNP transistors like 2SA965, facilitating push-pull configurations.
• Compact TO-92MOD Package: Standard through-hole package for easy integration into various circuit designs.
