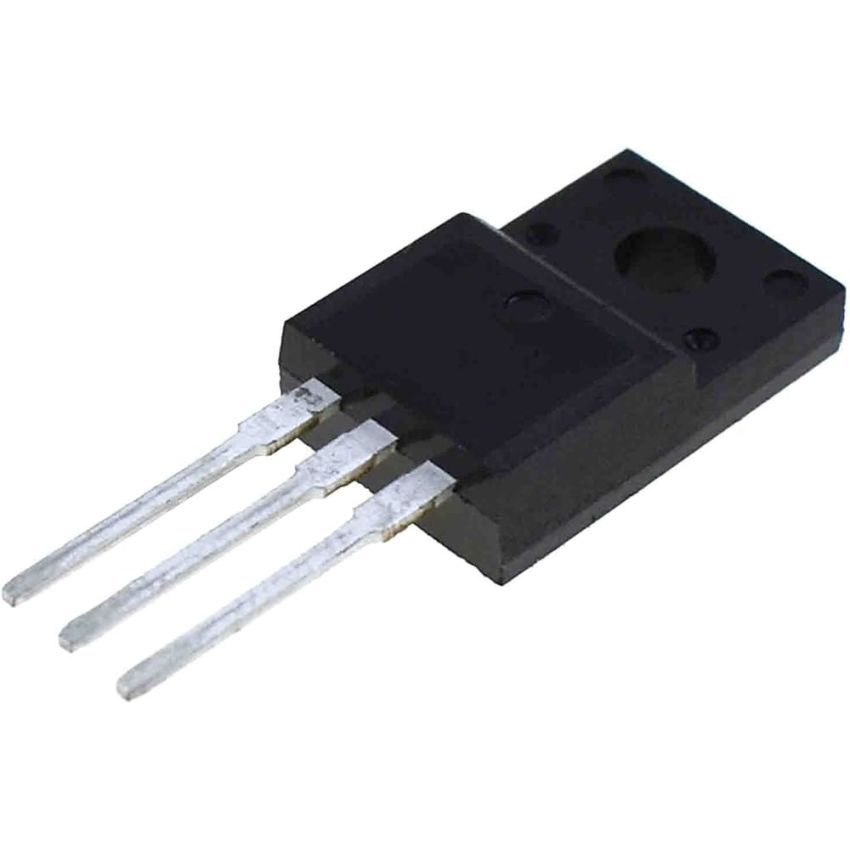

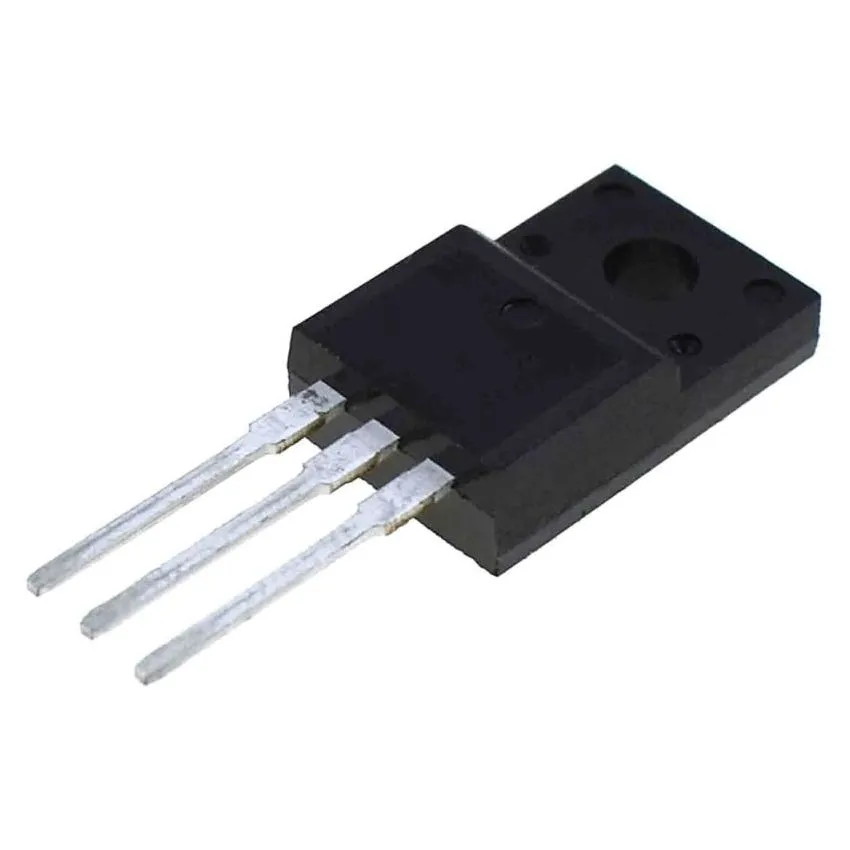

2SA2222 TO-220F-3

The 2SA2222 is a high-performance PNP epitaxial planar silicon transistor from Sanyo, designed for switching applications requiring high current and fast response. With a collector-emitter voltage of -50V and a collector current of -10A, it is commonly used in power control circuits, relay and lamp driving, and motor driver circuits. Its TO-220F-3 fully insulated package makes it ideal for compact and thermally efficient designs.

Key Features:

• High Current Handling: Continuous collector current of up to 10A.
• Low Saturation Voltage: V_CE(sat) as low as 0.25V at 6A.
• Fast Switching Speed: Turn-on time of 40ns, suitable for switching circuits.
• High Gain: DC current gain (h_FE) ranging from 150 to 450.
• Reliable TO-220F Insulated Package: Isolated tab allows for simplified mounting without insulators.
• Wide Application Use: Ideal for relay drivers, lamp drivers, and motor control.

Additional Specifications:

• Type: PNP
• Max Voltage: -50V
• Max Current: -10A
