S8025L,SCR Silicon Controlled Rectifier,25A,800V

The S8025L is a high-performance, gate-controlled rectifier designed for use in various power switching applications. With a rated repetitive off-state voltage (VDRM) of 800V and a continuous on-state current capability of up to 25A, this SCR is ideal for handling heavy-duty loads. The device features a sensitive gate trigger, making it suitable for phase control and motor control applications. Its rugged design ensures reliable operation in both industrial and domestic environments, including heating and static switching.

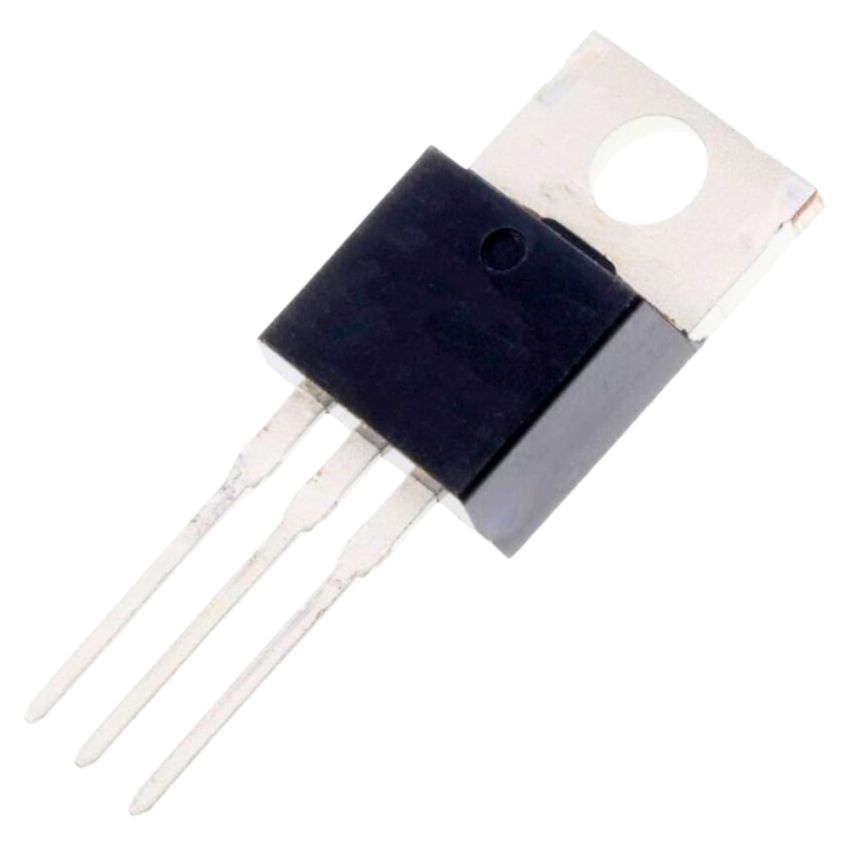

The S8025L is housed in a TO-220 package, which offers excellent heat dissipation capabilities. It incorporates glass passivation to enhance long-term reliability and withstands high surge currents. This SCR is widely used in motor drives, light dimmers, and controlled rectifiers.

• High Surge Capability: Handles peak surge currents up to 250A, ideal for applications requiring transient overload protection.
• High Voltage Tolerance: Withstands repetitive off-state voltages up to 800V, suitable for high-voltage circuits.
• Gate Sensitivity: Low gate trigger current and voltage requirements, ensuring efficient control in power circuits.
• Robust Construction: Glass passivation enhances durability, ensuring longevity and stability in operation.
• Thermal Efficiency: Packaged in TO-220 for optimal heat dissipation, enabling sustained high-power operation.
• Versatile Applications: Ideal for motor control, lighting dimmers, and controlled rectifiers in both industrial and domestic setups.
