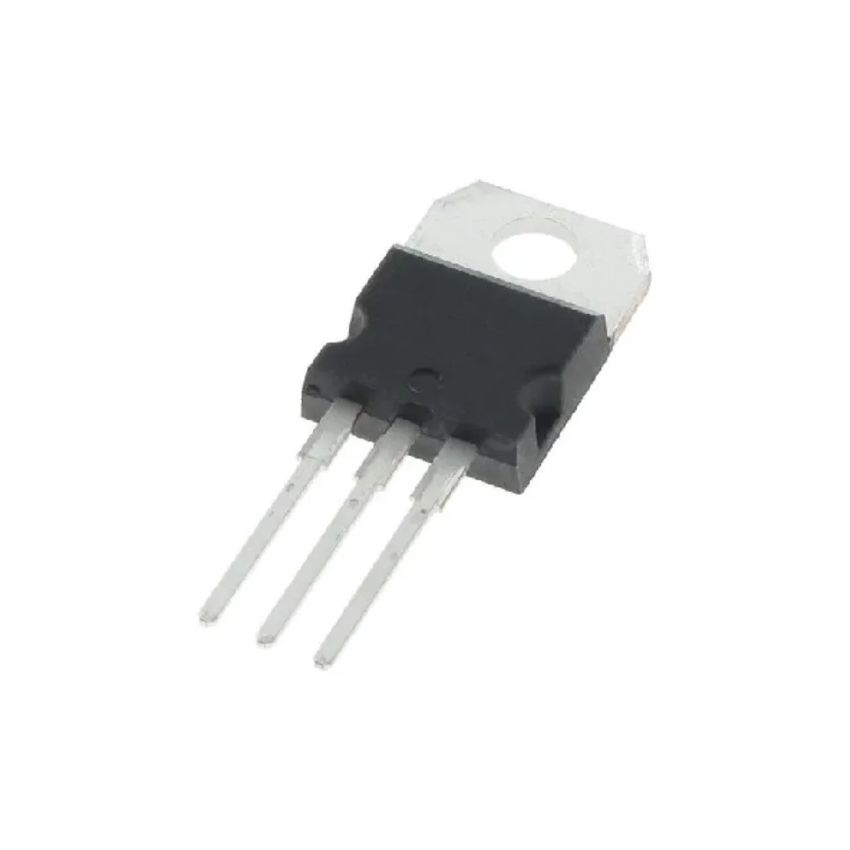

STP36NF06, N-Channel Power MOSFET, TO-220

The STP36NF06 is a high-performance N-channel MOSFET designed for high current, low voltage applications. It is part of ST’s STripFET™ II technology family and offers excellent conduction efficiency with fast switching characteristics. Ideal for applications in power management, DC-DC converters, and automotive switching, this device balances power and efficiency in a compact TO-220 package.

Key Features:

• Low On-Resistance: R_DS(on) of 0.032 Ω typical at V_GS = 10V.
• High Current Capability: Can handle continuous drain current of 30A at 25°C.
• Fast Switching Times: Ideal for high-speed switching applications.
• Avalanche Rated: Rugged performance in inductive switching environments.
• Low Gate Charge: Enables efficient driving and faster switching.
• TO-220 Package: Standard through-hole for robust thermal and electrical performance.

Additional Specifications:

• Mounting Style: Through Hole
• Continuous Current Drain (Id): 30A At 25°C
• Drain-Source Breakdown Voltage (Vds): 60V
• Gate-Source Threshld Voltage (Vgs th): 2V
• Power Dissipation: 70W
• Operating Temprature: -55+175°C
