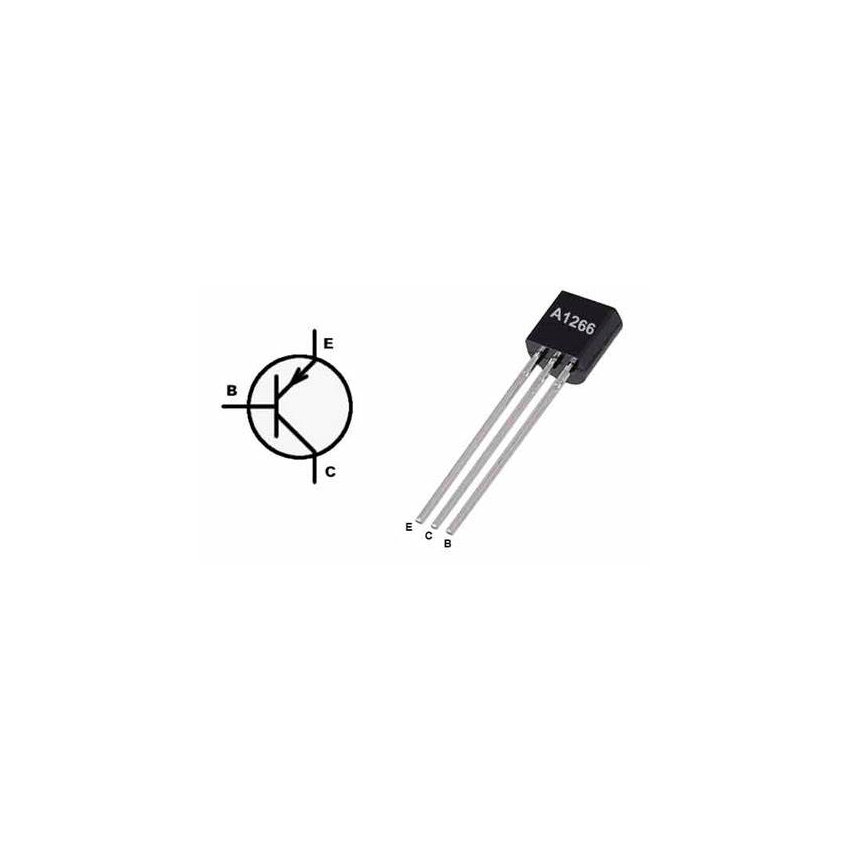

2SA1266,Silicon PNP Transistor, 50V 150mA
AEDÂ 4.00
Guarantee safe & secure checkout
The 2SA1266 is a silicon PNP transistor designed for low-frequency and low-noise amplification applications. It offers excellent hFE linearity and low noise performance, making it ideal for use in high-fidelity audio amplifiers and signal processing circuits. With a collector-emitter voltage rating of -50V and a collector current capability of -150mA, this transistor is suitable for a variety of analog circuit designs.
It features a complementary pairing with the 2SC3198 transistor for efficient push-pull configurations. The transistor's epitaxial planar design ensures reliable performance, while its compact TO-92 package makes it easy to integrate into various designs.Key Features :
- Low Noise Amplification: Noise figure as low as 1 dB (typical) for high-quality signal processing.
- High Linearity: Excellent hFE linearity (0.1mA to 2mA) with a typical value of 0.95.
- Voltage and Current Ratings: -50V collector-emitter voltage and -150mA collector current for robust operation.
- Compact Package: TO-92 package for space-saving designs.
- Complementary Pair: Designed to work with 2SC3198 in push-pull configurations.
- Reliable Performance: Excellent safe operating area for high stability in applications.
| Mounting Style | Through-Hole |
|---|---|
| Max Voltage | N/A |
