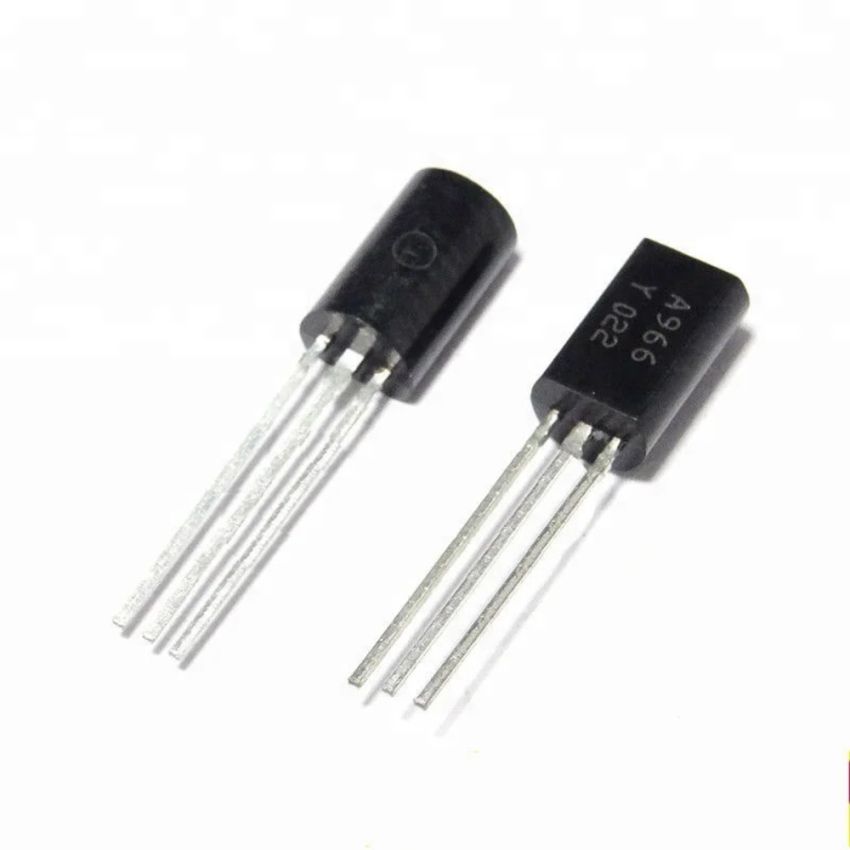

2SA966, Audio Power Amplifier Transistor, PNP, -30V VCEO, -1.5A Ic

The 2SA966 is a PNP silicon epitaxial planar transistor designed for high-fidelity audio power amplifier applications. It is ideal for use in complementary configurations with 2SC2236 for 3-W output applications. With its excellent frequency response and high power dissipation capabilities, this transistor ensures reliable and stable performance in demanding environments.

Featuring a maximum collector-emitter voltage of -30V, a maximum collector current of -1.5A, and a power dissipation of up to 900mW, the 2SA966 is well-suited for compact and efficient designs. Its TO-92MOD package ensures easy integration into various circuit boards.

This high-performance transistor is ideal for audio amplifiers, low-noise amplification, and signal processing in critical electronic systems.

Key Features :

• High Voltage Handling: Collector-Emitter Voltage (VCEO) of up to -30V.
• Current Capability: Supports a maximum collector current (Ic) of -1.5A.
• Compact Package: Housed in a TO-92MOD package for versatile design integration.
• Frequency Performance: High transition frequency (fT) of 120MHz, enabling superior high-frequency response.
• Thermal Durability: Operates reliably at junction temperatures up to 150C.
• Low Capacitance: Collector output capacitance (Cob) of only 40pF, ensuring minimal interference in signal processing.
