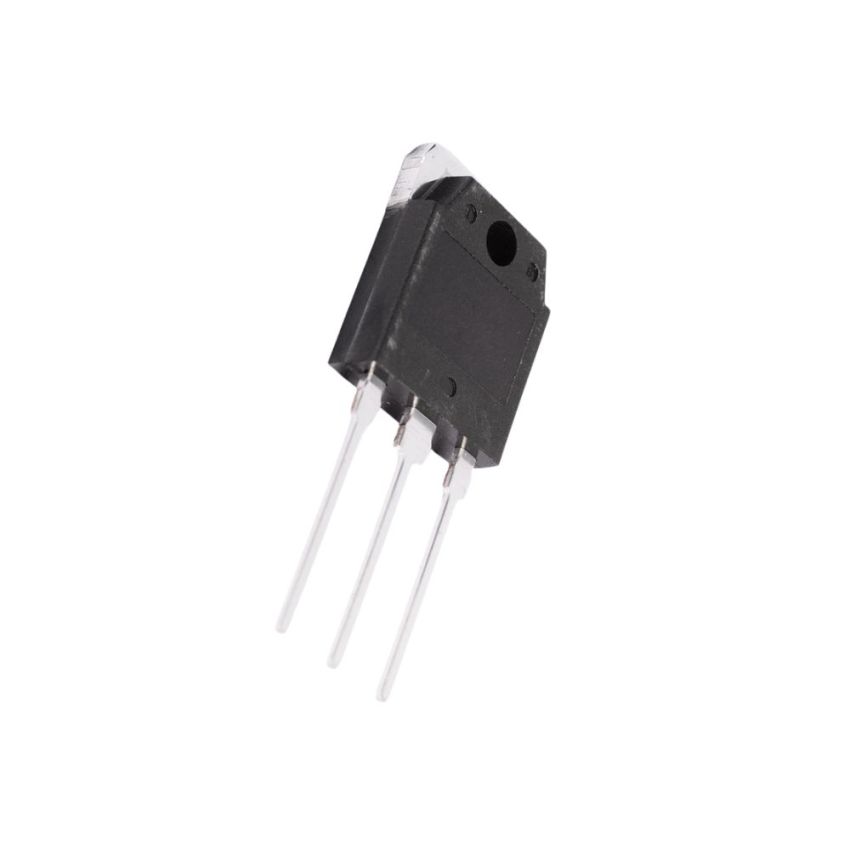

2SC3466, NPN Triple Diffused Planar Type Silicon Transistor, TO-3PB Package

The 2SC3466 is a high-performance NPN Triple Diffused Planar Type Silicon Transistor designed for switching regulator applications. With a high breakdown voltage of 1200V and a maximum collector current of 8A, it is well-suited for high-voltage and high-current operations. Its fast switching capabilities and wide Area of Safe Operation (ASO) make it ideal for use in demanding environments where reliability and efficiency are paramount. The TO-3PB package ensures excellent heat dissipation, contributing to the transistor's high reliability and performance.
Key Features:

• High breakdown voltage of 1200V, ensuring robust performance in high-voltage applications.
• Fast switching speed, making it suitable for high-frequency operations.
• Wide Area of Safe Operation (ASO), enhancing reliability under various operating conditions.
• Maximum collector power dissipation of 120W, allowing for efficient power handling.
• Collector current capacity up to 8A, supporting substantial current loads.
• TO-3PB package design, providing effective heat dissipation and durability.
