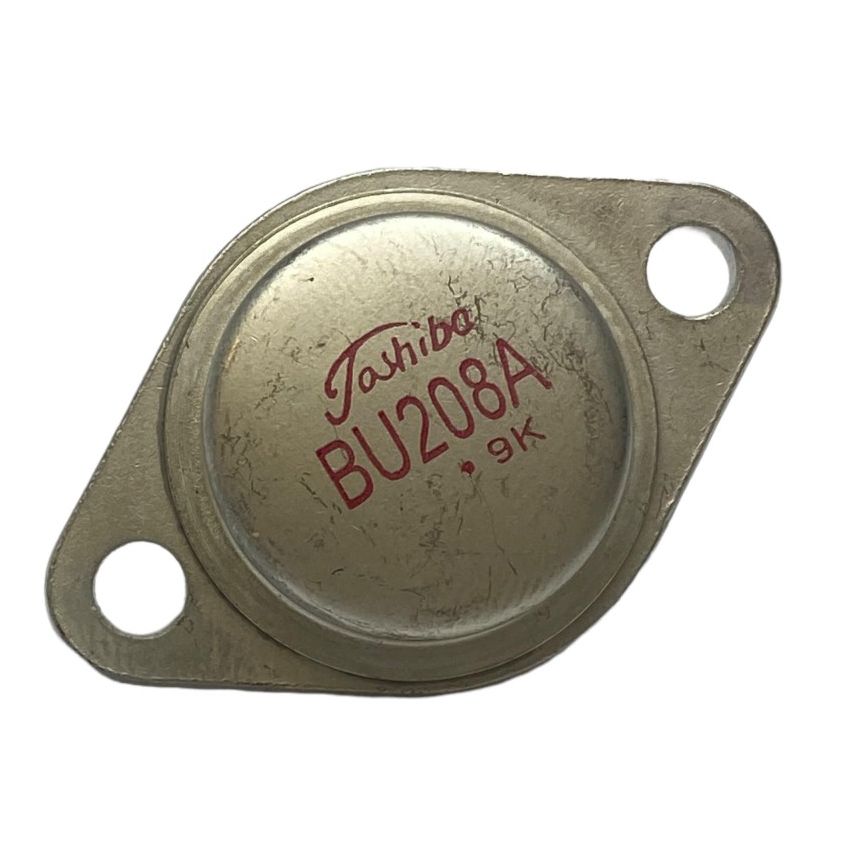

BU208A, NPN Silicon Power Transistor, 1500V

SKU
SCTx1647
Part Number
BU208A
In stock

Guarantee safe & secure checkout

The BU208A is a high-performance NPN Silicon Power Transistor designed for high-voltage horizontal deflection applications in television sets. It is capable of handling a collector-emitter voltage of up to 1500V and features fast switching speeds with a typical fall time of 400ns. Its robust design incorporates glass passivation technology for long-term stability and reliability.

The BU208A is housed in a TO-3 package, ensuring excellent thermal performance and durability. With its ability to manage high power dissipation and low thermal resistance, this transistor is ideal for high-stress applications. Whether you're designing or repairing TV deflection circuits, the BU208A provides dependable performance and efficiency.

Key Features :

  • High collector-emitter voltage capability of 1500V.
  • Fast switching speeds with a typical fall time of 400ns.
  • Glass passivated for enhanced long-term stability.
  • Low thermal resistance of 1°C/W for superior thermal management.
  • Designed for high-voltage horizontal deflection in TVs.
  • Encased in a durable TO-3 package for rugged use.
More Information
Mounting Style Through Hole
Max Voltage N/A
