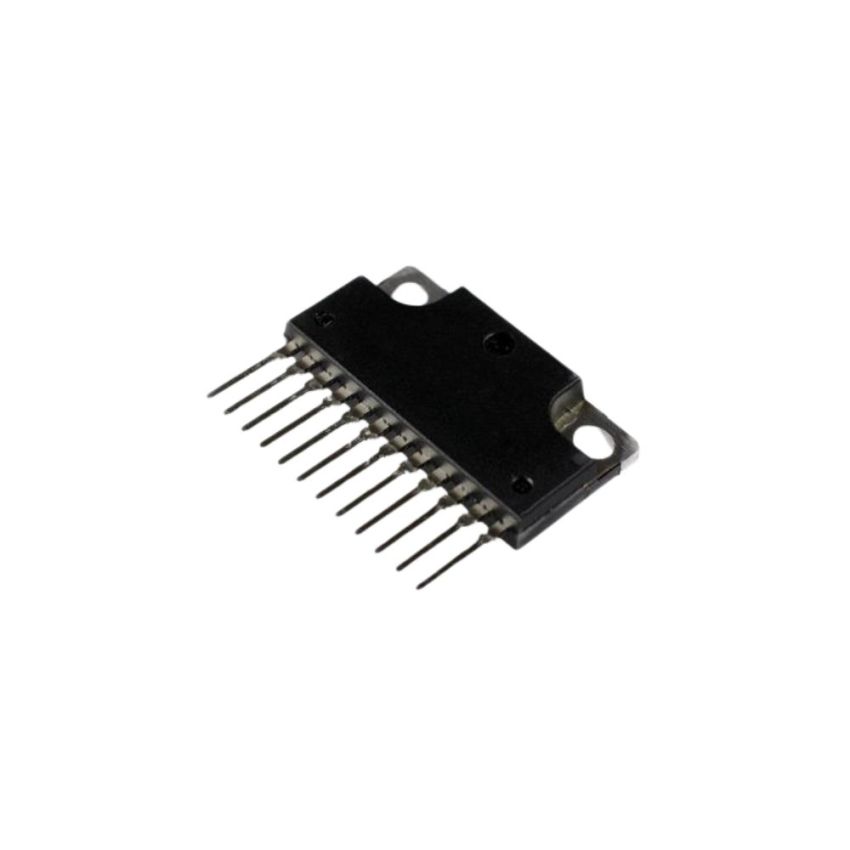

MP6801, P-Channel Power MOSFET Module, ZIP-12 Package

The MP6801 is a P-channel power MOSFET module designed for high-power, high-speed switching applications. It features six integrated devices, each capable of handling a drain-source voltage of -60 V and a continuous drain current of -5 A. The low on-resistance of 0.5 Ω per device reduces conduction losses, enhancing overall efficiency. This module is particularly suitable for 3-phase motor drives and bipolar pulse motor drives, offering a compact and efficient solution. The ZIP-12 package ensures effective heat dissipation, contributing to the module's reliability in demanding applications.

• High Drain-Source Voltage: Withstands up to -60 V, suitable for various power applications.
• High Continuous Drain Current: Rated at -5 A per device, ideal for substantial power requirements.
• Low On-Resistance: R_DS(on) of 0.5 Ω, minimizing conduction losses.
• Integrated 6-Device Configuration: Facilitates efficient design for 3-phase motor drives and bipolar pulse motor drives.
• High Power Dissipation: Capable of dissipating up to 40 W at T_c = 25°C, ensuring reliability under various conditions.
• High Power Dissipation: Capable of dissipating up to 40 W at T_c = 25°C, ensuring reliability under various conditions.
