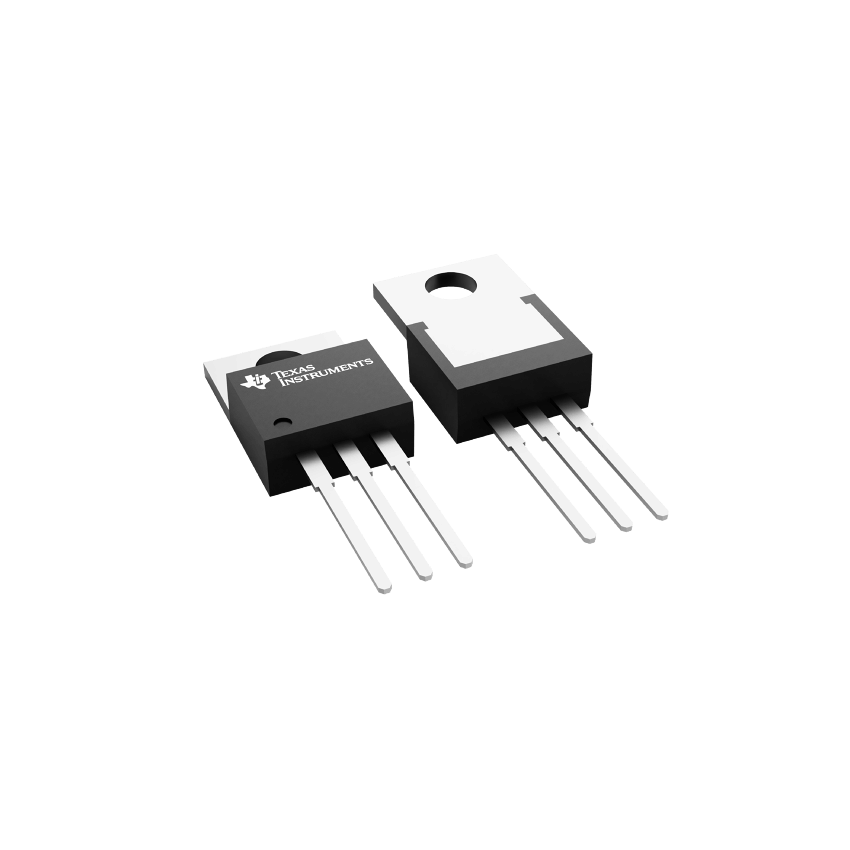

LM395T ,Power Transistor ,42V, Internally Limited, TO-220 Package

The LM395T is a highly reliable monolithic power transistor designed for applications requiring greater than 1.0 A continuous output current. This transistor integrates advanced internal thermal limiting and protection circuitry, offering exceptional reliability in a variety of high-current, high-performance applications.

The LM395T can be driven directly by CMOS or TTL devices and features a switching time of only 500 ns. It is housed in a TO-220 package, making it ideal for compact designs.

This device is well-suited for industrial, automotive, and consumer electronics applications, providing a robust solution for circuits requiring stable performance and enhanced protection mechanisms.

Key Features :

• Operating Voltage: 42V Collector-to-Emitter Voltage (VCEO Max).
• Continuous Collector Current: Greater than 1.0 A output.
• Thermal Protection: Integrated thermal shutdown for overload protection.
• Switching Time: Ultra-fast 500 ns switching time.
• Package Type: TO-220, ensuring easy mounting and heat dissipation.
• Temperature Range: Operating from -55C to +125C.
