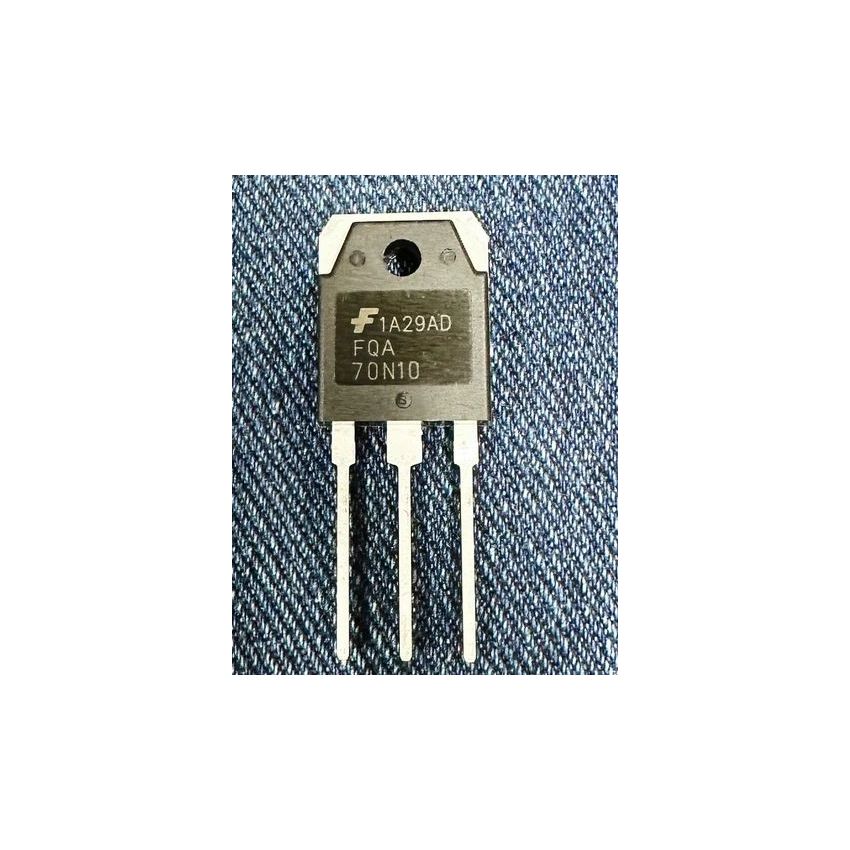

FQA70N10,N-Channel MOSFET,100V,70A,TO-3P Package

The FQA70N10 is a high-performance N-Channel MOSFET designed for use in various power applications such as DC-DC converters, motor control, and audio amplifiers. Featuring a low R_DS(on) of 0.023Ohm and a high current handling capacity of 70A, this device ensures efficient power delivery with minimal energy loss.

Its TO-3P package provides robust thermal dissipation, making it suitable for demanding applications. With a maximum Drain-Source Voltage (V_DS) of 100V and a Gate-Source Threshold Voltage (V_GS(th)) as low as 2.0V, the FQA70N10 is optimized for switching applications with high reliability and performance.

Key Features :

• High Current Capability: Supports continuous current drain up to 70A for robust operation in power applications.
• Low R_DS(on): Features an ultra-low on-resistance of 0.023Ohm for reduced power loss.
• High Voltage Tolerance: Withstands up to 100V Drain-Source breakdown voltage for a wide range of applications.
• Thermal Efficiency: TO-3P package ensures effective heat dissipation, supporting up to 214W power dissipation.
• Wide Operating Temperature Range: Operates reliably between -55C and 175C for versatile environments.
• Fast Switching Performance: Designed for high-frequency switching with low gate charge for energy-efficient operation.
