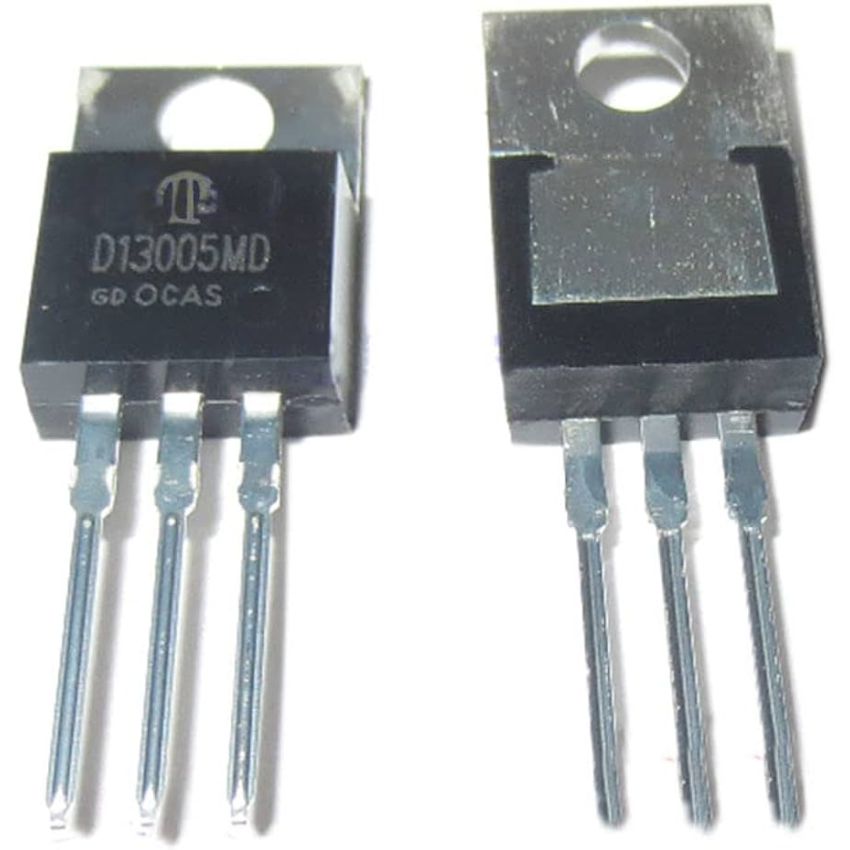

D13005MD,NPN Power Transistor,TO-220

The D13005MD is a high-voltage NPN power transistor designed for fast-switching and high-efficiency applications. With a Collector-Emitter Voltage (VCEO) Max of 400V and a Collector Current (Ic) rating of 4A, this transistor is ideal for use in high-voltage switching power supplies, energy-saving lighting, electronic ballasts, and amplifiers. The TO-220 package offers excellent thermal performance, ensuring safe operation even under heavy loads.

With a Collector-Base Voltage (VCBO) of 700V and an Emitter-Base Voltage (VEBO) of 9V, the D13005MD can handle demanding conditions while providing fast switching speeds to minimize energy losses. Its Power Dissipation rating of 75W allows it to operate reliably in both consumer electronics and industrial applications.

Designed to operate across a wide temperature range of -55C to +150C, the D13005MD ensures stable performance even in extreme environments. Whether you're building a power amplifier, energy-efficient lighting, or switching power supply, the D13005MD is a reliable choice for high-voltage, high-current applications.

• High-Voltage NPN Power Transistor: Designed for high-voltage, fast-switching applications such as energy-saving lights and power supplies.
• Collector-Emitter Voltage (VCEO) Max: Capable of handling up to 400V, making it suitable for high-voltage circuits.
• Collector Current (Ic): Rated at 4A, allowing for high current loads.
• Durable TO-220 Package: Ensures efficient heat dissipation and easy through-hole mounting.
• Power Dissipation: Maximum power dissipation of 75W, providing excellent performance under heavy load.
• Wide Operating Temperature Range: Operates between -55C to +150C, making it versatile for various industrial and consumer electronics.
