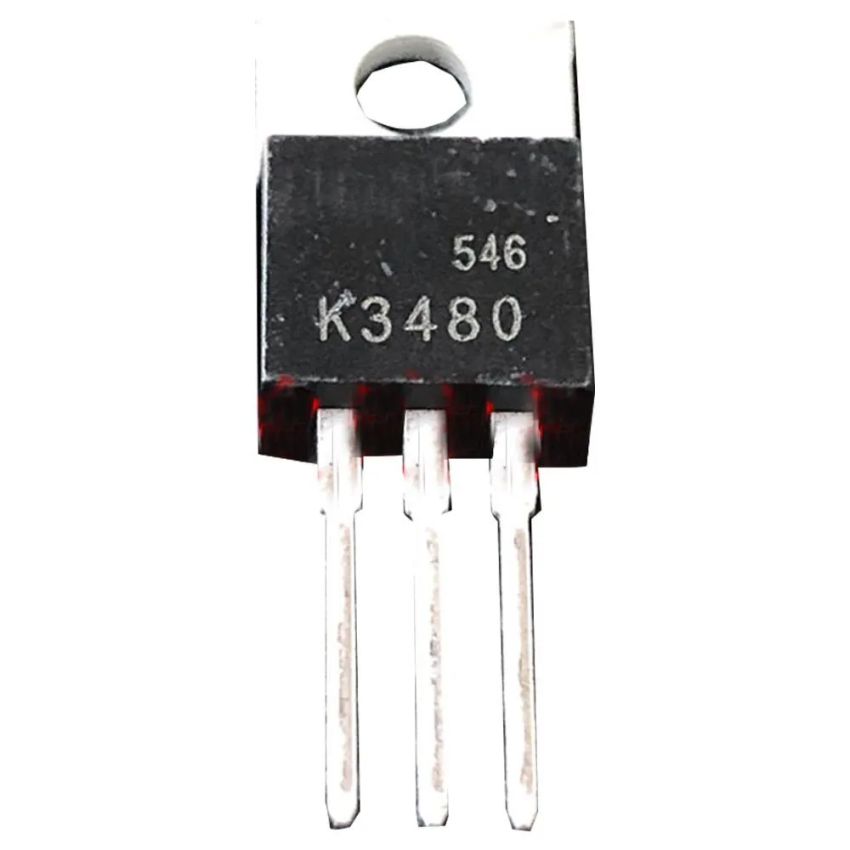

2SK3480,N-Channel Power MOSFET,100V,50A,TO-263
AED 12.00


Guarantee safe & secure checkout
You may check out all the available products and buy some in the shop.
Guarantee safe & secure checkout
The 2SK3480 TO-263 is an N-channel power MOSFET designed for high-power switching applications in industrial and consumer electronics. With a Drain-Source Breakdown Voltage (Vds) of 100V and a Continuous Current Drain (Id) of 50A, it is ideal for applications such as power supplies, motor control systems, and switching regulators. This MOSFET offers low on-state resistance (Rds(on)) of 31 mOhm, ensuring high efficiency and minimal energy loss during operation.
The 2SK3480 features a Gate-Source Threshold Voltage (Vgs th) ranging from 1.5V to 2.5V, providing fast switching and easy control with standard gate drive signals. Packaged in a TO-263 surface-mount form, it delivers excellent heat dissipation, making it suitable for space-constrained designs that require effective thermal management.
With a Power Dissipation rating of 84W and an Operating Temperature Range from -55C to +150C, the 2SK3480 ensures reliable performance in both industrial and high-temperature environments. Its rugged construction and superior thermal performance make it the perfect choice for demanding power applications such as motor drives, high-voltage switching, and DC-DC converters.
Key Features :Operating Temperature | -55+150C |
---|---|
Mounting Style | Surface Mount |
