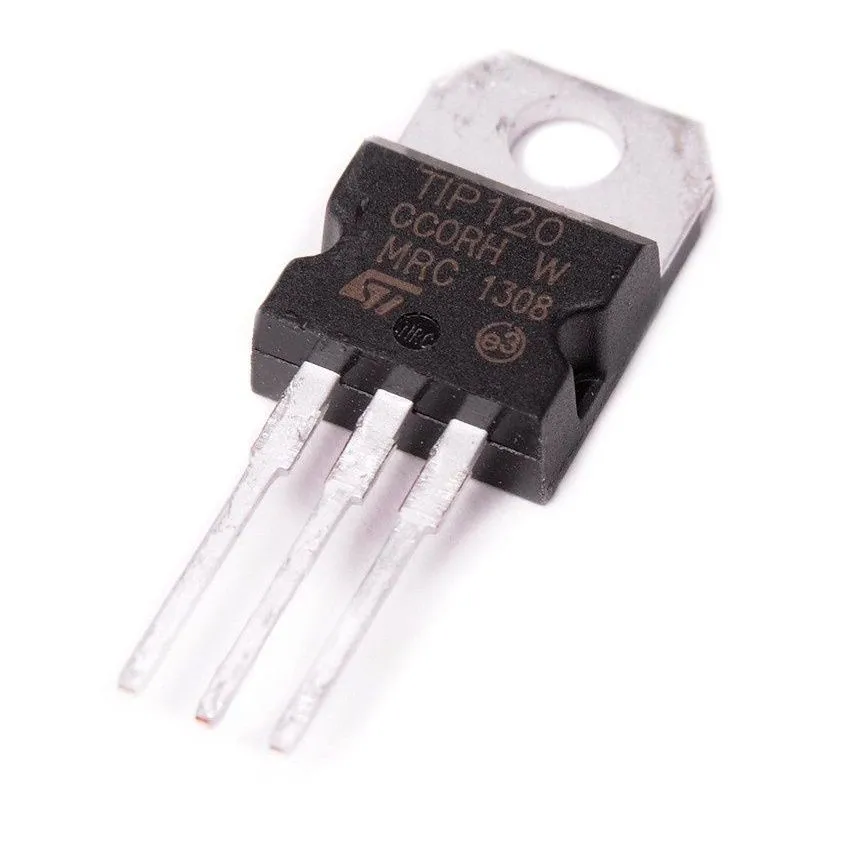

TIP120, NPN Darlington Power Transistor, TO-220-3 Package

The TIP120 is an NPN epitaxial Darlington transistor designed for medium power linear and switching applications. Its high current gain and voltage ratings make it suitable for driving inductive loads such as motors, solenoids, and relays. The integrated Darlington configuration simplifies circuit design by providing high amplification with low base current requirements. Encased in the industry-standard TO-220-3 package, the TIP120 ensures efficient thermal management and straightforward integration into a wide range of electronic circuits.​

Key Features:

• High Current Gain: Offers a DC current gain (h_FE) of 1000, enabling effective amplification with minimal base current.​
• High Voltage Capability: Withstands collector-emitter voltages up to 60V, suitable for medium voltage applications.​
• Significant Current Handling: Supports continuous collector currents up to 5A and peak currents up to 8A, ideal for driving moderate loads.​
• Integrated Darlington Pair: Combines two transistors in a Darlington configuration for higher gain and simplified circuit design.​
• Robust Power Dissipation: Capable of dissipating up to 65W, allowing operation in power-intensive scenarios.​
• Standard TO-220-3 Package: Facilitates easy mounting and efficient heat dissipation in various applications.​

Additional Specifications:

• Mounting Style: Through-Hole
• Maximum DC Collector Current (Ic): 5A
• Collector-Emitter Voltage (VCEO) Max: 60V
• Collector-Base Voltage (VCBO): 60V
• Emitter-Base Voltage (VEBO): 5V
• Power Dissipation: 65W
• Operating Temprature: -65+150°C
