BU902, NPN Power Transistor, TO-247 Package

The BU902 is a silicon NPN power transistor designed for high-speed switching applications and high-power dissipation. It features a collector-emitter breakdown voltage of 480V, a continuous collector current of 8A, and a peak current capacity of 10A. Encased in a robust TO-247 package, the BU902 is ideal for demanding environments requiring efficient thermal management. With fast switching times and high current gain, this transistor is particularly suitable for use in switching mode power supplies and other high-frequency applications.

• High collector-emitter breakdown voltage of 480V (minimum) for high-voltage applications.
• Collector current capacity of 8A continuous and 10A peak, ideal for medium to high-power circuits.
• High power dissipation of 100W for excellent thermal management.
• Fast switching times with a turn-off time of 4 μs and a fall time of 1 μs.

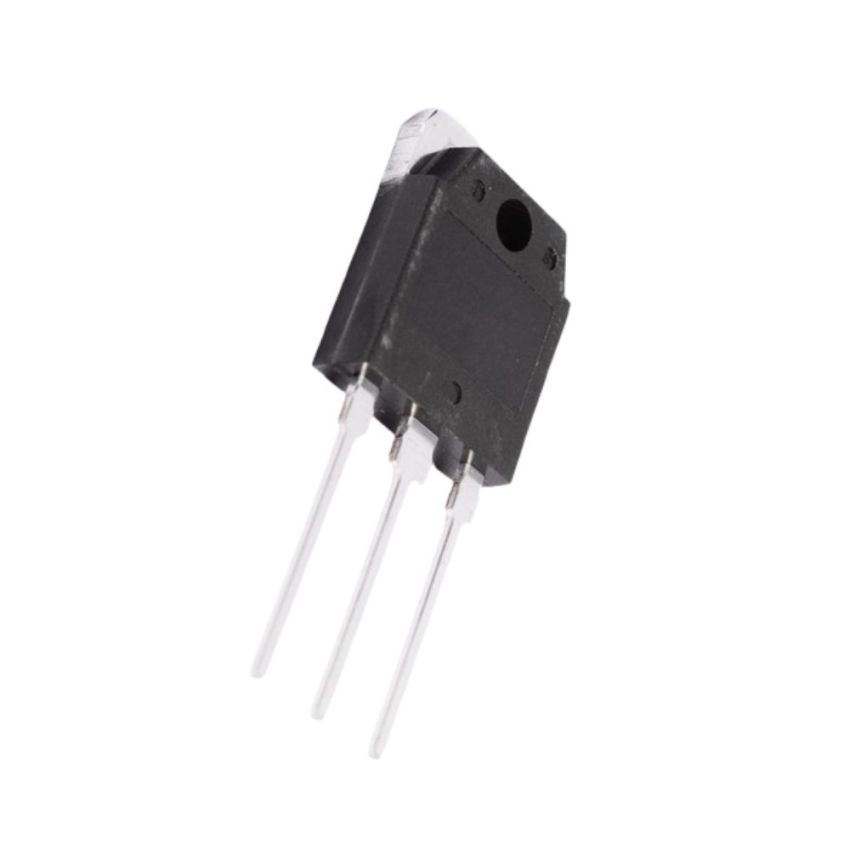

• Durable TO-247 package for robust mechanical and thermal performance.
• Optimized for use in switching mode power supplies.
