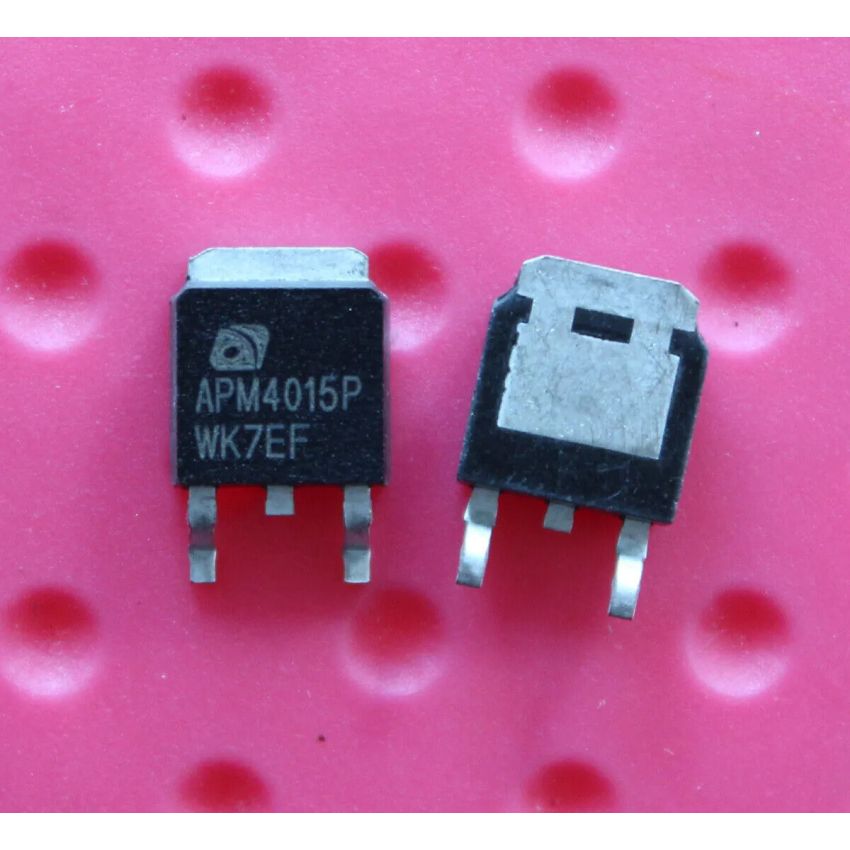

APM4015PU,P-Channel MOSFET,-40V 45A,TO-252

The APM4015PU is a high-performance P-Channel Enhancement Mode MOSFET designed for power management applications, such as LCD TV inverters and other demanding electronic devices. With a breakdown voltage of -40V and a continuous drain current of 45A, it is optimized for high-efficiency operations in compact, high-power systems.

The MOSFET features low on-state resistance for reduced power loss, robust gate threshold voltage for reliable switching, and a compact TO-252 package for effective thermal management. Its lead-free and RoHS-compliant design makes it an environmentally friendly and highly reliable choice for modern electronics.

Key Features :

• High Power Capability: Supports up to 45A continuous current and -40V drain-source voltage.
• Low On-State Resistance: Ensures efficient energy use with typical Rds(on) values of 13mOhm (Vgs = -10V) and 19mOhm (Vgs = -4.5V).
• Compact Package: TO-252 surface-mount design enhances thermal dissipation and minimizes space.
• Enhanced Durability: Designed with super high-density cell technology for ruggedness and reliability.
• Wide Temperature Range: Operates reliably from -55C to 150C.
• Environmentally Friendly: Fully lead-free and RoHS-compliant, supporting sustainable development.
