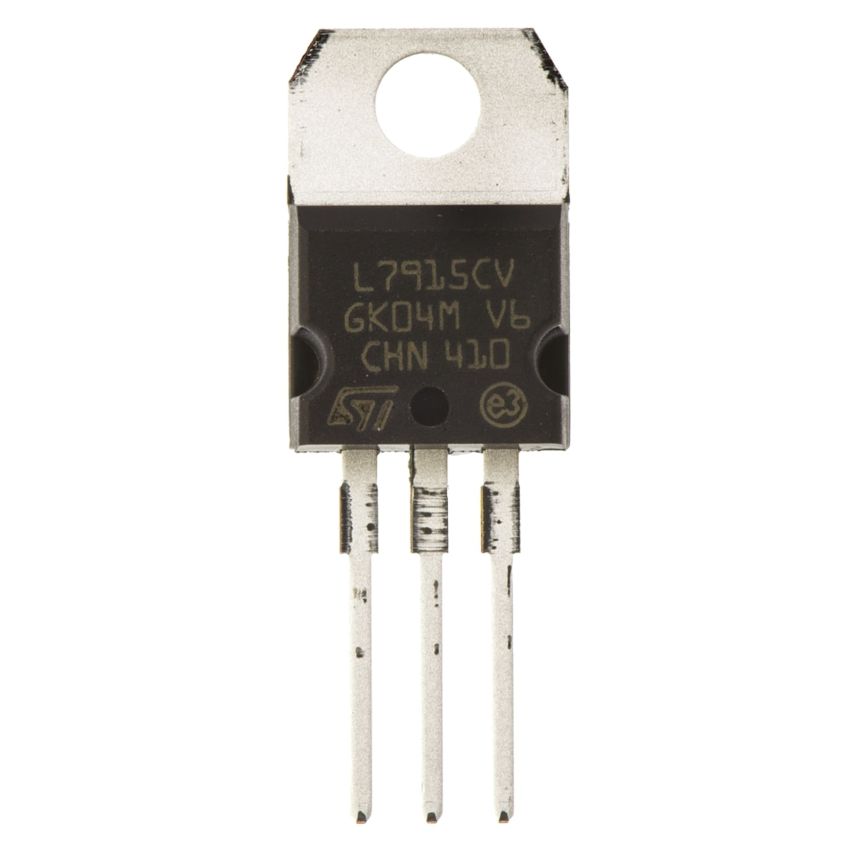

L7915CV TO-220, 1.5A, -15V Fixed Negative Voltage Regulator

The L7915CV is a three-terminal negative voltage regulator, providing a fixed output of -15V with up to 1.5A current. It features built-in protection mechanisms, including thermal overload and short-circuit protection, making it highly reliable in applications such as power supplies and local regulation on circuit boards.

Designed to be easy to use with minimal external components, this regulator can deliver steady performance across various applications. Its TO-220 package allows efficient heat dissipation, suitable for industrial and consumer electronics.

Key Features :

• Fixed Output Voltage: -15V with up to 1.5A current capability.
• Thermal Overload Protection: Automatically shuts down in overheating conditions.
• Short Circuit Protection: Protects against excess current.
• Output SOA Protection: Ensures safe operation within defined limits.
• Wide Input Voltage Range: Up to -35V, making it versatile for a variety of circuits.
• Package: TO-220 for effective heat management, compatible with heatsinks for enhanced thermal dissipation.
