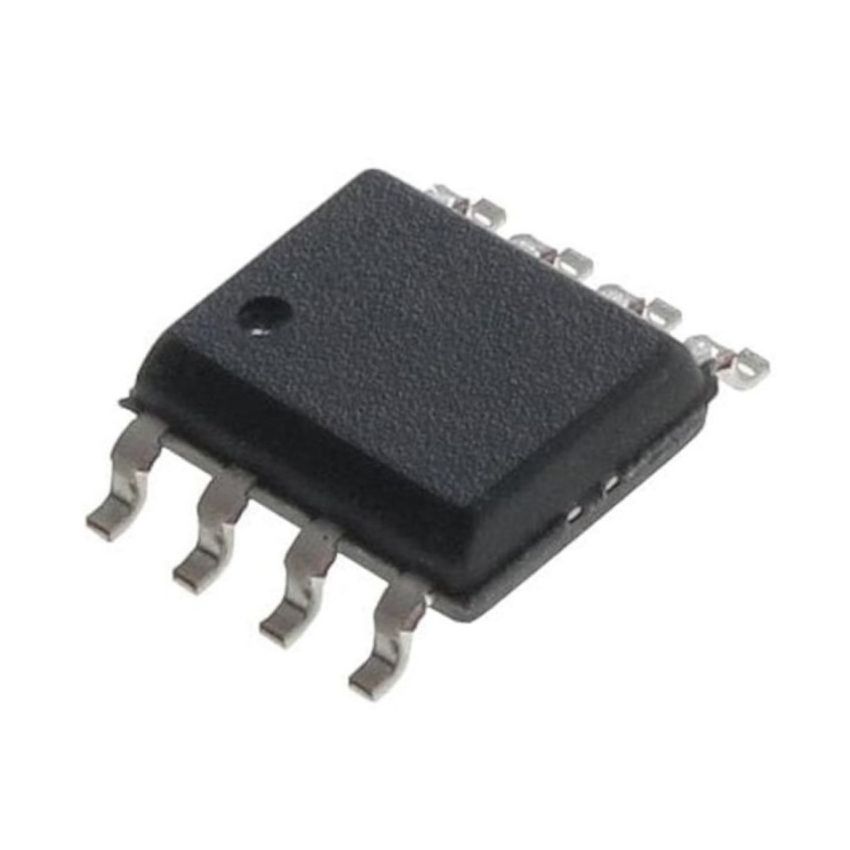

LM2904D Dual Operational Amplifier Low Power 1MHz 30V SOIC8 STMicroelectronics

The LM2904D is a dual operational amplifier from STMicroelectronics, designed for general-purpose analog signal processing tasks. It integrates two independent, high-gain, internally frequency-compensated op-amps into a single compact SOIC-8 surface-mount package, allowing for space-constrained PCB designs.

Key Features:

• Dual low-power general-purpose op-amps in a single SOIC-8 package
• Wide single or dual supply operation: 3V to 30V or ±1.5V to ±15V
• Gain Bandwidth Product: 1.1 MHz (typical)
• Input common-mode range includes ground
• Low power consumption with a typical supply current of 0.7 mA per amplifier
• Slew rate of 0.3 V/µs ensures adequate response for general analog applications

Additional Specifications:

• Package Type: SOIC-8
• Common Mode Rejection Ratio (CMRR): 70 dB
• Rail to Rail: No
• Gain Bandwidth Product(GBP): 1.1 MHz
• Output Current: 20 mA
