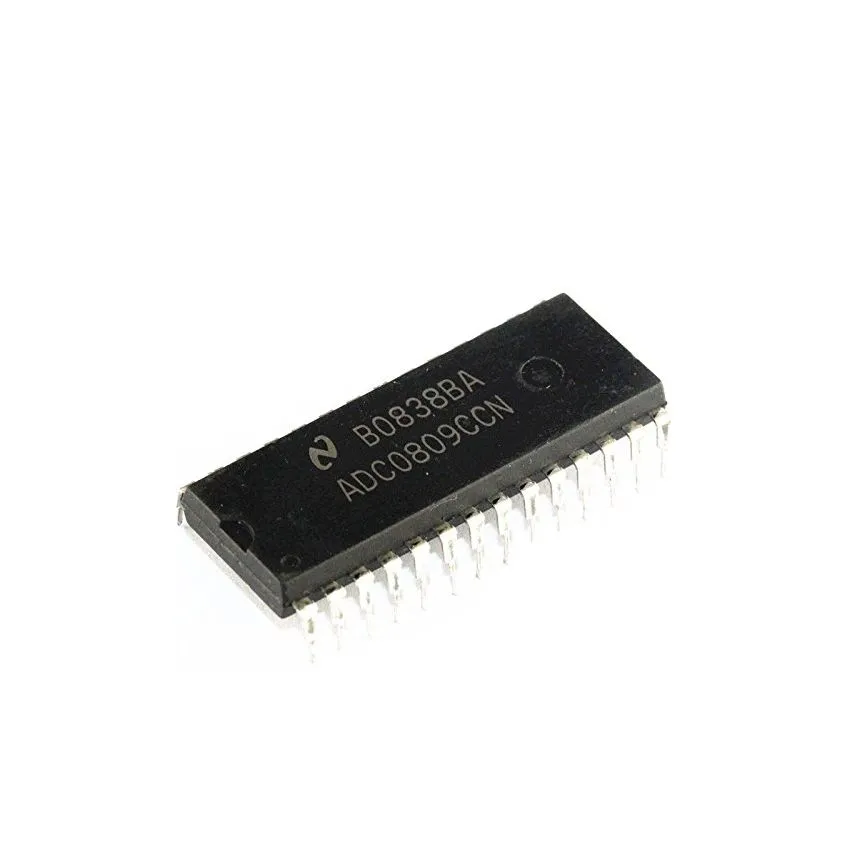

ADC0809CCN,Analog-to-Digital Converter,8-Channel Multiplexer,DIP-28

The ADC0809CCN is a versatile 8-bit analog-to-digital converter with a built-in 8-channel multiplexer. Designed for easy interfacing with microprocessors, it features ratiometric conversion, low power consumption, and robust design for industrial applications. Its integrated multiplexer allows seamless selection of input channels, making it ideal for process control, automotive systems, and consumer electronics. The device's high-speed successive approximation register ensures fast and accurate conversions, while its single-supply operation simplifies system design.

• 8-Bit Resolution: High-speed, accurate A/D conversion with a resolution suitable for most embedded applications.
• 8-Channel Multiplexer: Provides the ability to select from 8 different analog input channels.
• Microprocessor-Compatible: Easy to interface with a wide range of microcontrollers and processors.
• Wide Operating Voltage Range: Operates with a supply voltage range of 4.5V to 6.0V, compatible with TTL-level signals.
• Low Power Consumption: Consumes just 15 mW, ideal for battery-operated systems.
• Single Supply Operation: Simplifies design by eliminating the need for dual power supplies.
