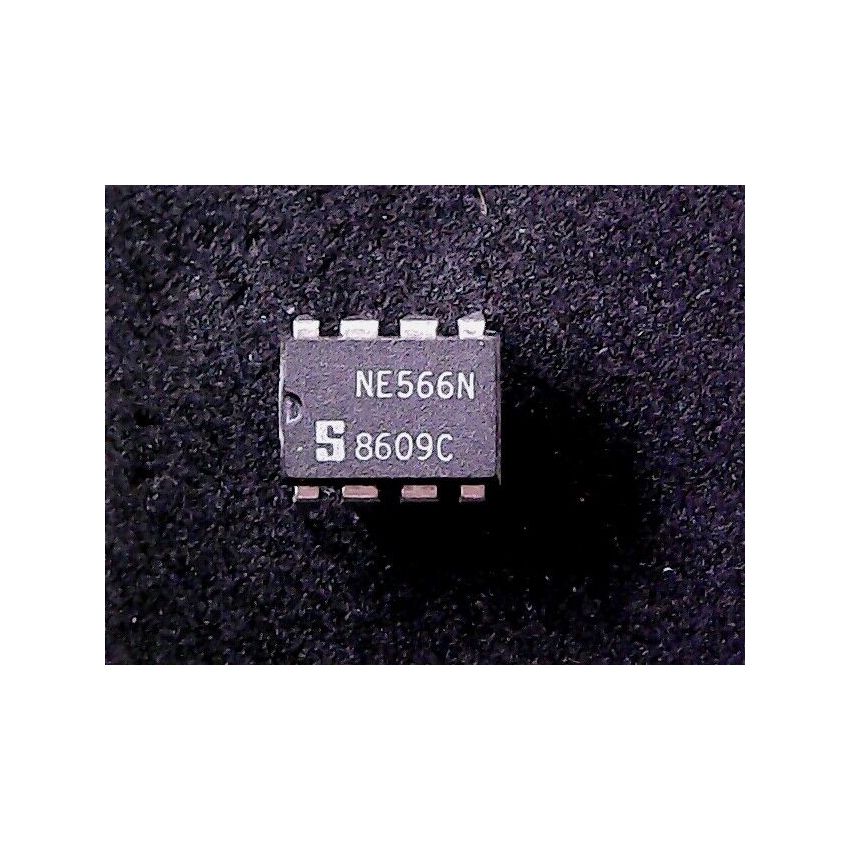

NE566N,Voltage-Controlled Oscillator and Function Generator,DIP-8

The NE566N - DIP-8 is a highly versatile voltage-controlled oscillator (VCO) and function generator, designed for applications requiring precise frequency control with exceptional linearity. The NE566N generates both square wave and triangle wave outputs, with the frequency of oscillation determined by an external resistor and capacitor. Capable of operating over a wide voltage range of up to 24V, the NE566N can be programmed over a 10:1 frequency range, making it an ideal choice for applications such as tone generators, frequency shift keying (FSK), FM modulators, and clock generators.

With a high degree of stability (200ppm/C typical drift), the NE566N ensures reliable performance in temperature-sensitive applications. The device is capable of producing output frequencies of up to 1MHz with minimal distortion, offering a highly linear triangle wave and well-defined square wave outputs. Its low output impedance and wide frequency sweep range make it suitable for various signal generation tasks.

Packaged in a compact DIP-8 form, the NE566N is ideal for signal generators, audio tone generators, test equipment, and other applications where a reliable, space-efficient VCO is required. Its low external component count and ease of use make it a popular choice for engineers and hobbyists alike.

• Voltage-Controlled Oscillator (VCO): Supports highly linear frequency modulation with both square and triangle wave outputs.
• Wide Operating Voltage Range: Operates with single or dual supply voltages, up to 24V, providing flexibility for different circuit designs.
• High Frequency Stability: Offers a stable center frequency with a drift of 200ppm/C, ensuring precise frequency control.
• Wide Frequency Range: Frequency is adjustable over a 10:1 range with the same external capacitor.
• Dual Output: Provides both square wave and triangle wave outputs with minimal distortion and low output impedance.
• Compact DIP-8 Package: Ideal for space-constrained designs requiring a function generator with minimal external components.
