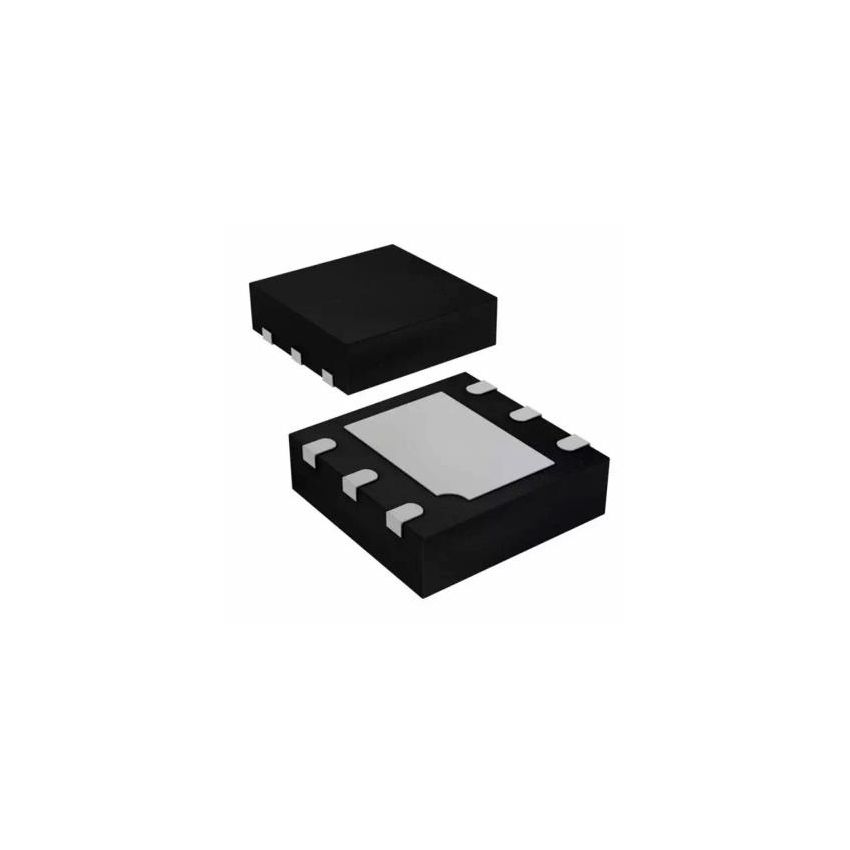

LTC6993HDCB3 Monostable Timer IC DFN8 1us to 33s Edge Triggered

The LTC6993HDCB-3#TRMPBF is a member of the TimerBlox™ family from Analog Devices, providing an edge-triggered monostable pulse generator in a compact 8-pin DFN package. This device is designed to produce a precise output pulse when triggered by a rising or falling edge, ideal for timing delays, watchdog timers, and pulse-width generation.

Key Features:

• Pulse duration programmable from 1μs to 33.6s
• Accurate ±1.5% timing over temperature and supply
• Single edge-triggered monostable configuration
• Supply voltage from 2.25V to 5.5V for wide application compatibility
• Low operating current (typ. 50μA at 3V) for battery-powered systems
• Built-in power-on reset and glitch immunity

Additional Specifications:

• Package Type: DFN-8
• IC type: Monostable Timer IC
• Mounting Style: SMD
