TL431AIDBZR,Adjustable Shunt Voltage Reference,SOT-23

The TL431AIDBZR is an adjustable precision shunt voltage reference designed for use in a wide range of applications. With a programmable output voltage range from 2.495V to 36V, this IC provides a high level of accuracy and stability for power supply designs, battery chargers, and voltage monitoring systems. Its low dynamic impedance and wide current range make it a versatile solution for analog and digital circuits.

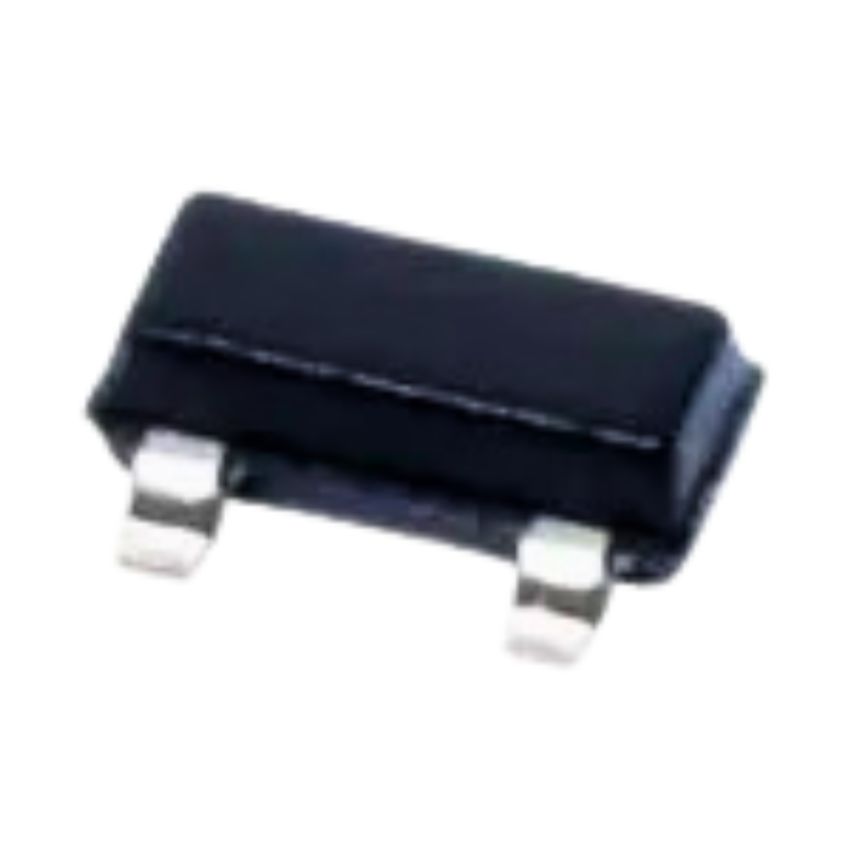

Encased in a compact SOT-23 package, the TL431AIDBZR is optimized for surface-mount PCB designs, making it ideal for space-constrained applications. The device supports an operating temperature range from -40°C to +85°C, ensuring reliable performance in industrial and consumer electronIcs.

• Adjustable Voltage Reference: Provides a programmable output voltage range from 2.495V to 36V using external resistors.
• High Precision and Stability: Features a typical reference voltage of 2.495V with low temperature coefficient for stable operation.
• Wide Operating Current Range: Supports a cathode current range from 1mA to 100mA, suitable for diverse applications.
• Compact SOT-23 Package: Space-saving surface-mount package for efficient PCB integration.
• Low Dynamic Impedance: Ensures reliable performance with a typical impedance of 0.2Ω.
• Versatile Applications: Ideal for voltage monitoring, power supply design, and analog-to-digital converters.
