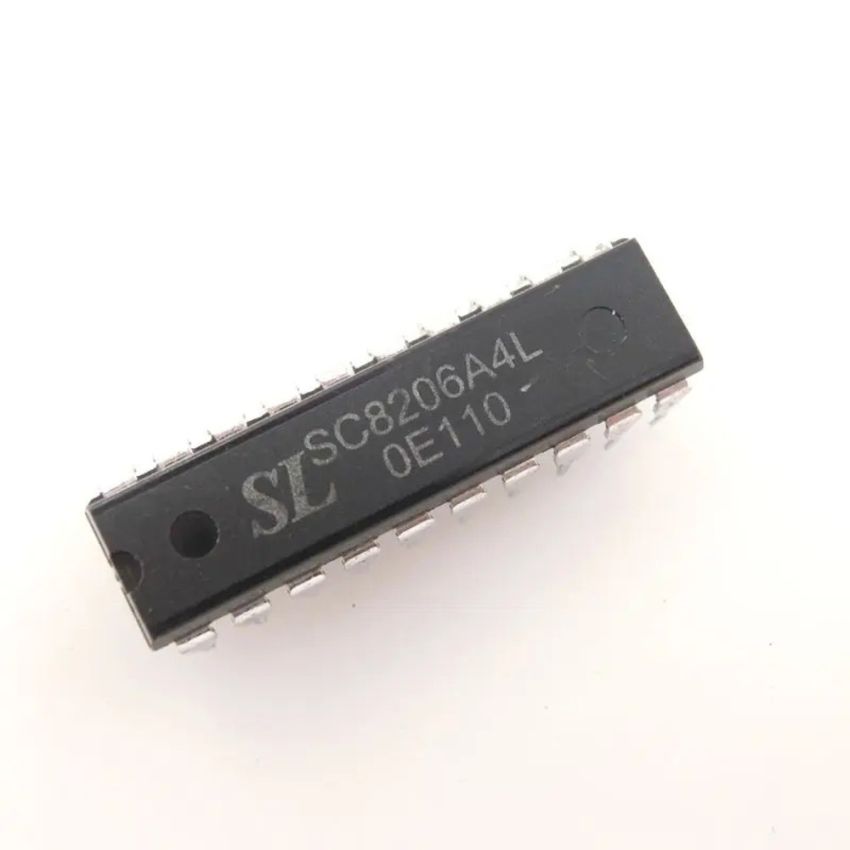

SC8206A4L, Remote Fan Control IC, DIP-18

The SC8206A4L is a high-performance remote fan control IC, designed for electronic fans, air cleaners, humidifiers, and heaters. It integrates multiple operation modes, including nature wind simulation and sleep wind, providing an enhanced user experience.

With built-in infrared remote control decoding, the SC8206A4L enables wireless fan operation, eliminating the need for mechanical switches. The integrated timer modes (0.5, 1, 2, and 4-hour settings) allow for automatic shut-off, improving energy efficiency.

Operating in a DIP-18 package, the SC8206A4L is optimized for through-hole PCB designs, making it ideal for cost-effective fan and home appliance manufacturing. Additional features include buzzer output for user feedback and light control functionality, making it a versatile solution for smart home applications.

• Integrated Fan Control Functions: Supports speed control, off-timer, nature wind, and sleep mode in a single IC.
• Remote Control Capability: Decodes infrared remote control signals, enabling wireless operation.
• Multi-Speed Operation: Allows three-speed settings (low, medium, and strong) for customizable airflow control.
• Built-In Timer Modes: Supports 0.5, 1, 2, and 4-hour accumulated timer mode for energy efficiency.
• Buzzer and Light Control Output: Includes buzzer feedback and an independent light control function.
• DIP-18 Package for Easy Integration: Designed for through-hole mounting, ensuring simple PCB layout and cost-effective manufacturing.
