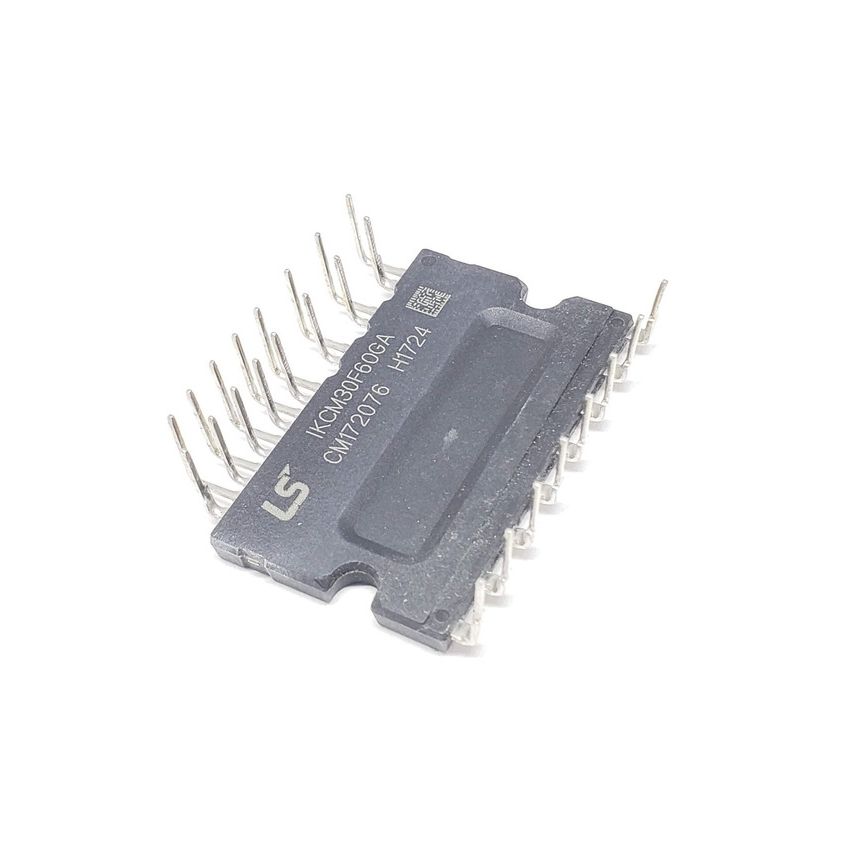

IKCM30F60GA, Intelligent Power Module (IPM) - 600V, 30A

The IKCM30F60GA Intelligent Power Module (IPM) is a highly integrated device designed to simplify motor control applications. With a voltage rating of 600V and a current capacity of 30A, this module offers efficient power management and protection features.

It combines IGBTs, drivers, and protection circuitry into one package, reducing external components and simplifying system design. Its compact design is ideal for high-performance motor drive systems and industrial applications requiring robust power control.

• Integrated IGBT and Driver Circuitry: The IKCM30F60GA integrates both the Insulated Gate Bipolar Transistor (IGBT)
• 600V, 30A Power Handling Capability: Capable of handling up to 600V and 30A, this module is designed to deliver reliable and efficient performance for high-power motor drives and industrial applications.
• Built-in Protection Mechanisms: Equipped with comprehensive protection features including under-voltage lockout (UVLO)
• Thermal Monitoring and Protection: The module features integrated temperature sensors that continuously monitor the device’s thermal conditions
• High Efficiency in Power Conversion: By integrating power semiconductors and drive electronics, the IKCM30F60GA minimizes energy loss and improves the efficiency of power conversion
• Compact and Thermally Optimized Package: Housed in a compact package, this module is designed for high-density applications where board space is limited.
