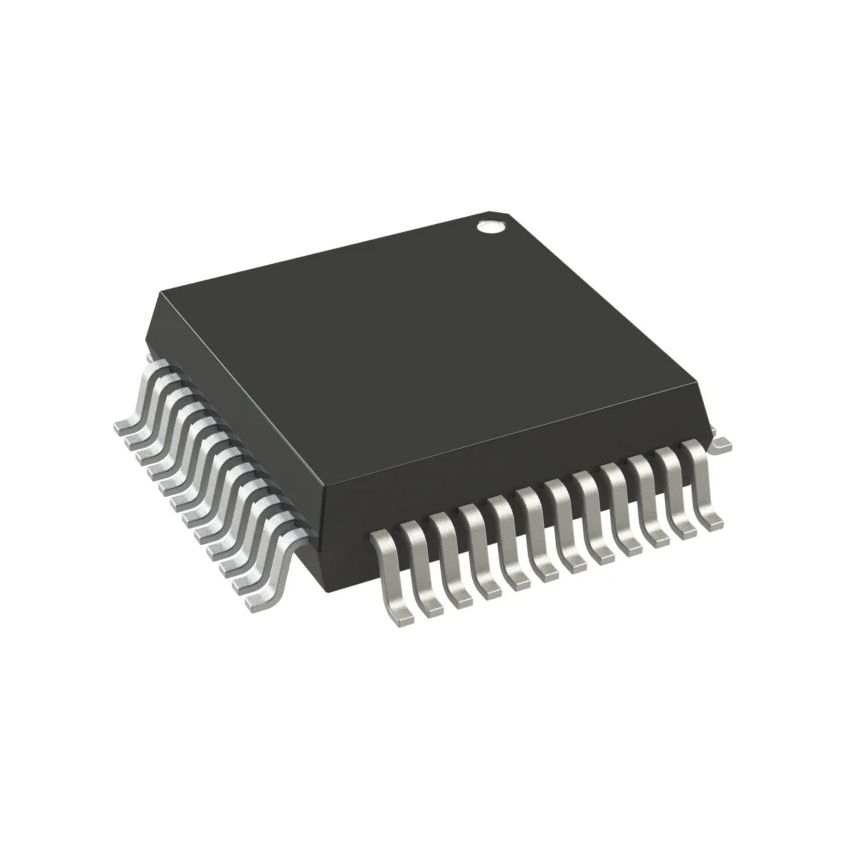

ADAU1701JSTZ, Audio DSP SigmaDSP with ADCs and DACs, LQFP-48 Package Type

The ADAU1701JSTZ is a SigmaDSP® digital audio processor developed by Analog Devices. Designed for real-time audio processing applications, it integrates two 24-bit ADCs, four 24-bit DACs, and a powerful 28-/56-bit audio DSP core into a single LQFP-48 surface mount package. It is ideal for applications in consumer audio equipment, automotive sound systems, and digital audio effects devices.

Key Features:

• 28-/56-bit SigmaDSP® audio processor with on-chip ADCs and DACs
• Two 24-bit ADCs and four 24-bit DACs
• Integrated microcontroller control interface via I²C or SPI
• Supports self-boot from external EEPROM
• On-chip stereo S/PDIF and serial audio ports
• Supports real-time audio signal processing with graphical SigmaStudioâ„¢ tools

Additional Specifications:

• Package Type: LQFP-48
• IC type: SigmaDSP Digital Audio Processor
• Mounting Style: SMD
