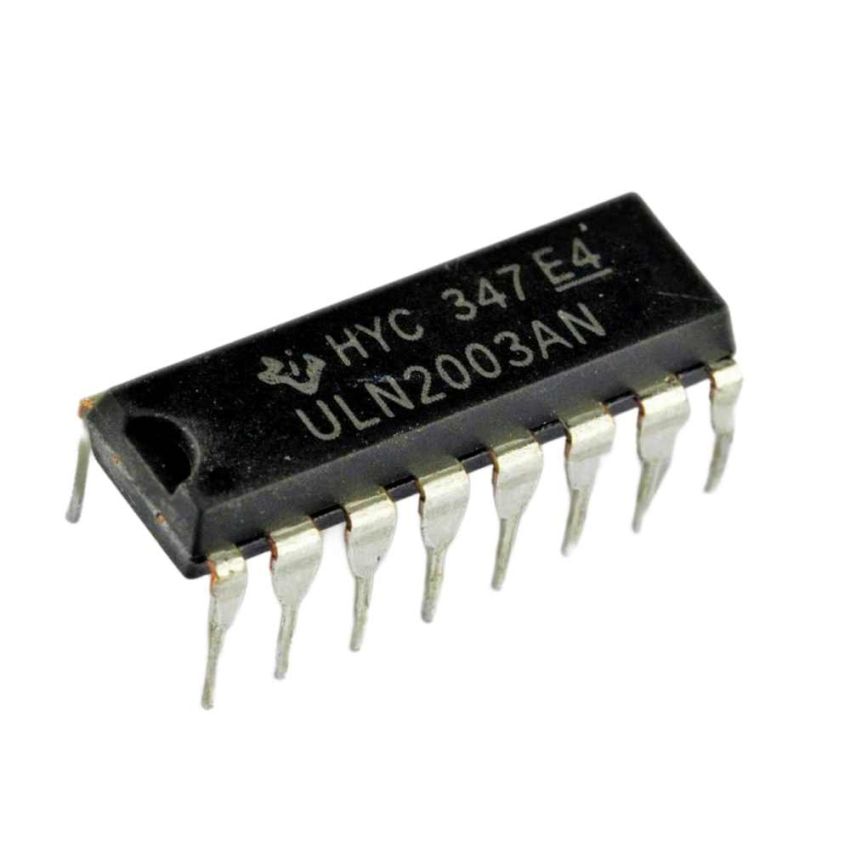

ULN2003AN,Darlington Transistor Array, DIP-16, 7-Channel

The ULN2003AN is a versatile Darlington transistor array designed to drive high-voltage, high-current loads such as relays, stepper motors, and LED displays. Featuring 7 channels, each capable of handling up to 500mA with a maximum output voltage of 50V, this IC is perfect for applications where multiple loads need to be controlled. With its built-in suppression diodes, it provides protection against inductive spikes, ensuring safe and reliable operation.

The ULN2003AN is widely used in various industries for automation systems, robotics, and motor control. Its compatibility with TTL and CMOS inputs makes it an ideal choice for interfacing with microcontrollers and other logic circuits. Available in a convenient DIP-16 package, it is suitable for through-hole PCB mounting, making it an essential component in any control system design.

• 7-Channel Darlington Driver - Capable of driving high-voltage, high-current loads such as relays, stepper motors, and LEDs.
• DIP-16 Package - Dual Inline Package with 16 pins for easy integration into various electronic designs.
• High-Current Capacity - Each channel can handle up to 500mA, with a maximum voltage of 50V per output.
• TTL and CMOS Compatible Inputs - Logic inputs compatible with 5V TTL or 3.3V CMOS systems.
• Built-In Suppression Diodes - Includes freewheeling diodes for inductive load protection, preventing voltage spikes.
• Widely Used in Automation - Ideal for industrial, automotive, and home automation applications.
