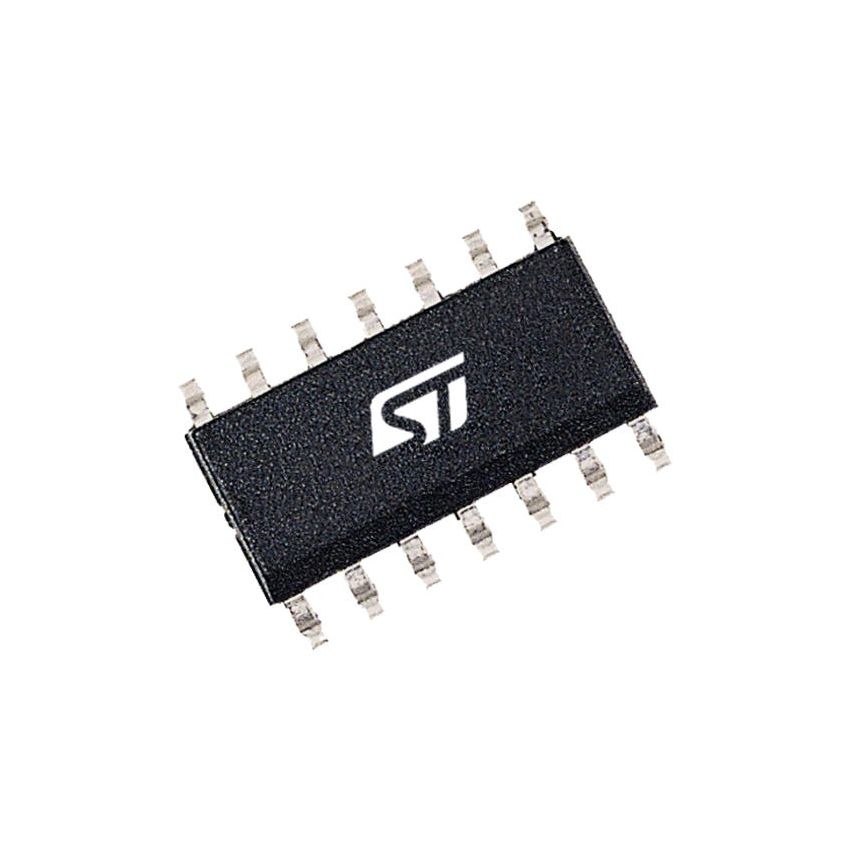

L6386ED,High-Voltage Half-Bridge Driver IC,SMD-14

The L6386ED is a high-voltage half-bridge driver IC that is designed to control power devices like MOSFETs and IGBTs in various applications. Featuring integrated bootstrap circuitry, the L6386ED simplifies the design of high-voltage circuits by minimizing the need for external components. It supports fast switching speeds, making it ideal for efficient power control, DC-DC converters, motor drives, and other industrial applications. This device is provided in a compact SMD-14 package, making it suitable for surface mounting on PCBs, which allows for space-saving and streamlined designs. With built-in protection features such as undervoltage lockout, the L6386ED ensures robust and reliable performance even under challenging conditions.

• High-Voltage Capability: Designed to drive high-side and low-side MOSFETs or IGBTs up to 600V.
• Low Standby Current: Efficient operation with reduced power consumption.
• Integrated Bootstrap Diode: Simplifies the circuit design by reducing external components.
• SMD-14 Package: Surface-mount device for compact PCB designs.
• High Switching Frequency: Suitable for fast-switching power control applications.
• Undervoltage Lockout: Ensures reliable operation by preventing malfunction under low voltage conditions.
