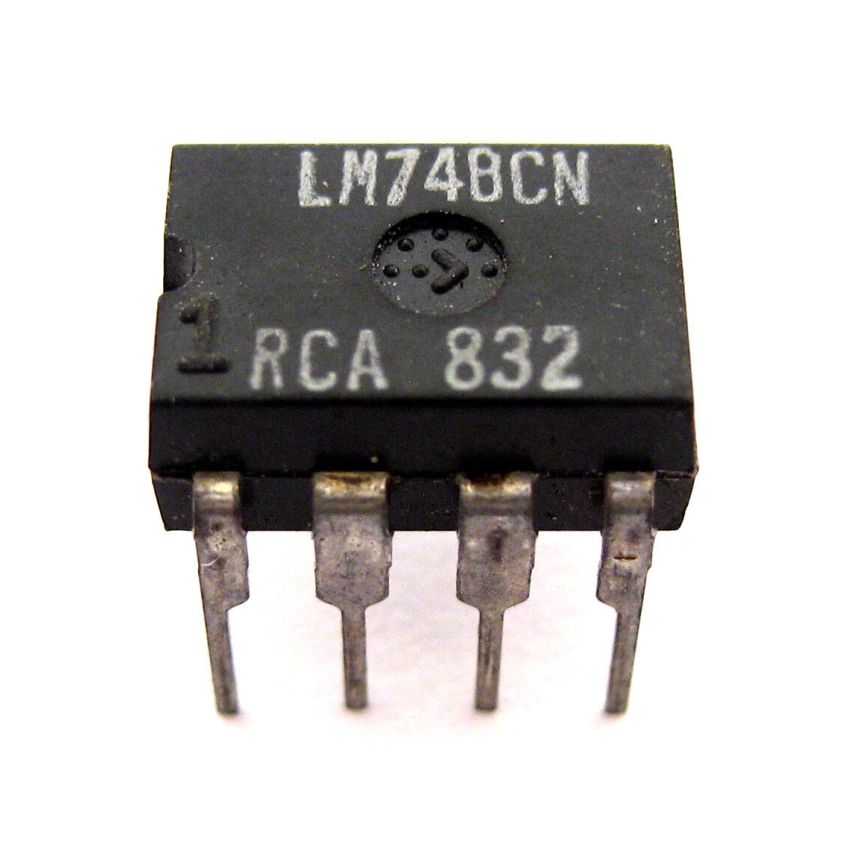

LM748CN, Dual Operational Amplifier ,20V - DIP-8 Package

The LM748CN is a general-purpose dual operational amplifier designed with external frequency compensation, offering reliable and stable performance across a wide voltage range. Known for its low input offset and high gain stability, the LM748CN is suited for various analog signal processing applications, such as audio amplifiers, filters, and instrumentation circuits. Its wide power supply range, extending from ±5V to ±20V, ensures compatibility with numerous power systems, making it a versatile choice for engineers.

With built-in short-circuit protection and thermal shutdown, the LM748CN offers durability in demanding environments. This operational amplifier operates efficiently with capacitive loads, maintaining excellent output characteristics and stability, even under high feedback configurations.

Key Features :

• Wide Operating Voltage Range: Compatible with ±5V to ±20V power supplies, providing flexibility for multiple applications.
• Low Input Offset Voltage: Ensures high accuracy in signal amplification for sensitive applications.
• High Common-Mode Rejection Ratio (CMRR): Provides stable operation by minimizing interference from common-mode signals.
• Short-Circuit Protection: Protects the amplifier from damage in case of accidental output shorts.
• Temperature Range: Rated to operate from 0°C to +70°C, suitable for standard operating conditions.
• Dual Configuration: Offers two amplifiers in a single DIP-8 package, enabling compact circuit designs.
