HM4716A-3, 16Kbit (16K x 1) Page Mode DRAM, DIP-16

The HM4716A-3 is a 16Kbit (16K x 1) Page Mode Dynamic Random-Access Memory (DRAM) developed by Hitachi. Designed for applications requiring moderate-speed memory solutions, this DRAM offers an access time of 200ns, making it suitable for various computing and industrial applications.

Utilizing page mode operation, the HM4716A-3 enables faster access within a row, improving data retrieval times for sequential data processes. It operates on a single 5V power supply, ensuring compatibility with standard TTL logic levels.

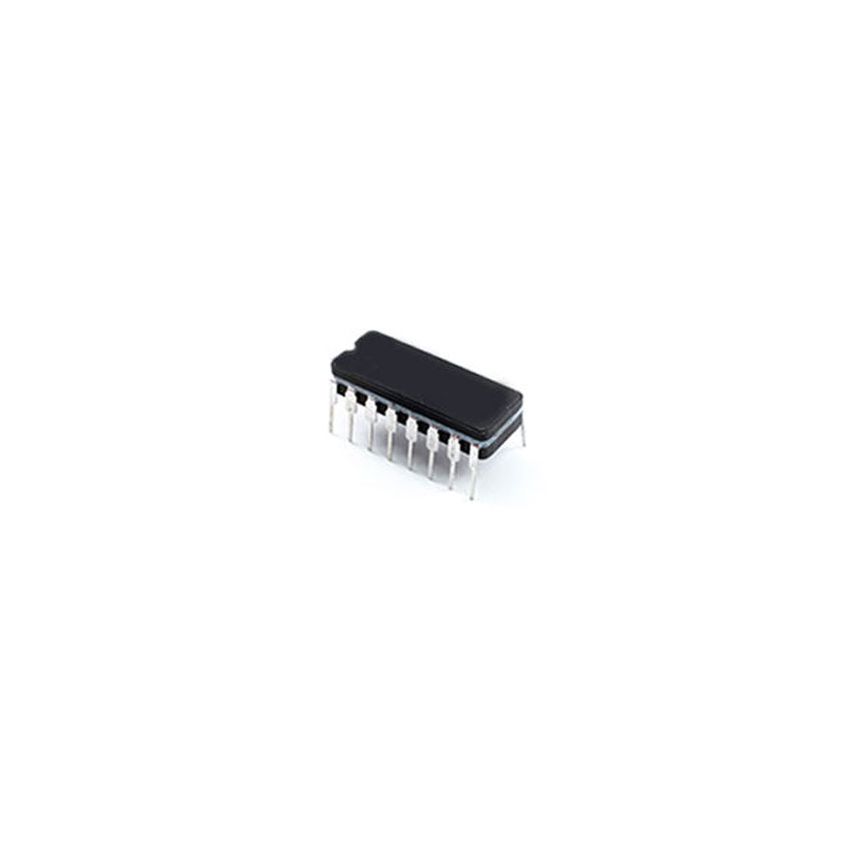

Encased in a 16-pin Ceramic Dual In-Line Package (CDIP), this DRAM provides durability and ease of integration into through-hole designs. The separate input and output lines simplify data management, making it a reliable choice for systems requiring stable and efficient memory performance.

The HM4716A-3 is well-suited for applications such as legacy computing systems, industrial equipment, and other electronics where dependable dynamic memory is essential.

• 16Kbit Page Mode DRAM: Organized as 16,384 words by 1 bit, providing efficient volatile memory storage.
• 200ns Access Time: Ensures reliable performance for applications with moderate speed requirements.
• Page Mode Operation: Allows for faster access within a row, enhancing data retrieval efficiency.
• Single 5V Power Supply: Operates at a standard 5V, compatible with typical TTL logic levels.
• Ceramic Dual In-Line Package (CDIP-16): Durable 16-pin ceramic DIP for through-hole mounting, suitable for robust applications.
• Separate I/O Lines: Features distinct input and output lines, facilitating straightforward data management.
