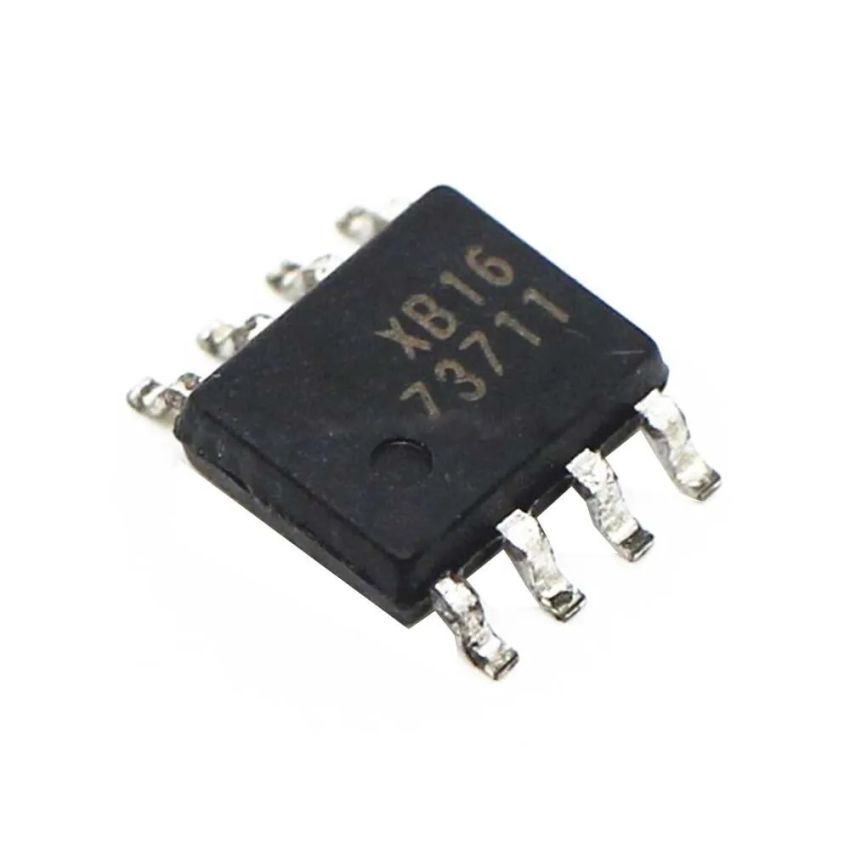

FAN73711MX ,High-Side Gate Driver IC, 600V, 4A Output

SKU
SCIx1986
Part Number
FAN73711MX
Brand:
In stock
Add to Wish List

Guarantee safe & secure checkout

The FAN73711 is a high-current, high-side gate driver IC designed for driving MOSFETs and IGBTs in high-speed switching applications up to +600V. With 4A sourcing and sinking capability, it offers robust protection features like under-voltage lockout (UVLO) for VBS and a built-in shunt regulator on VDD and VBS.

The IC integrates advanced noise-canceling techniques and supports 3.3V and 5V input logic for superior performance in demanding environments like plasma displays, motor drive inverters, and DC-DC converters. The FAN73711 comes in a compact 8-SOP package, ensuring minimal cross-conduction and highly efficient operation.

Key Features :

  • Floating Channel: Supports up to +600V bootstrap operation for high-voltage applications.
  • High Output Current: Capable of sourcing and sinking 4A for driving high-speed MOSFETs and IGBTs.
  • Noise Canceling Circuit: Minimizes noise for better performance in harsh environments.
  • Input Logic Compatibility: Works with 3.3V and 5V logic systems.
  • Under-Voltage Lockout (UVLO): Protects the system by shutting down at low VBS voltage.
  • 8-Lead SOP Package: Ensures compact size and easy integration in space-limited designs.
Type Gate Driver IC
Current 4A
