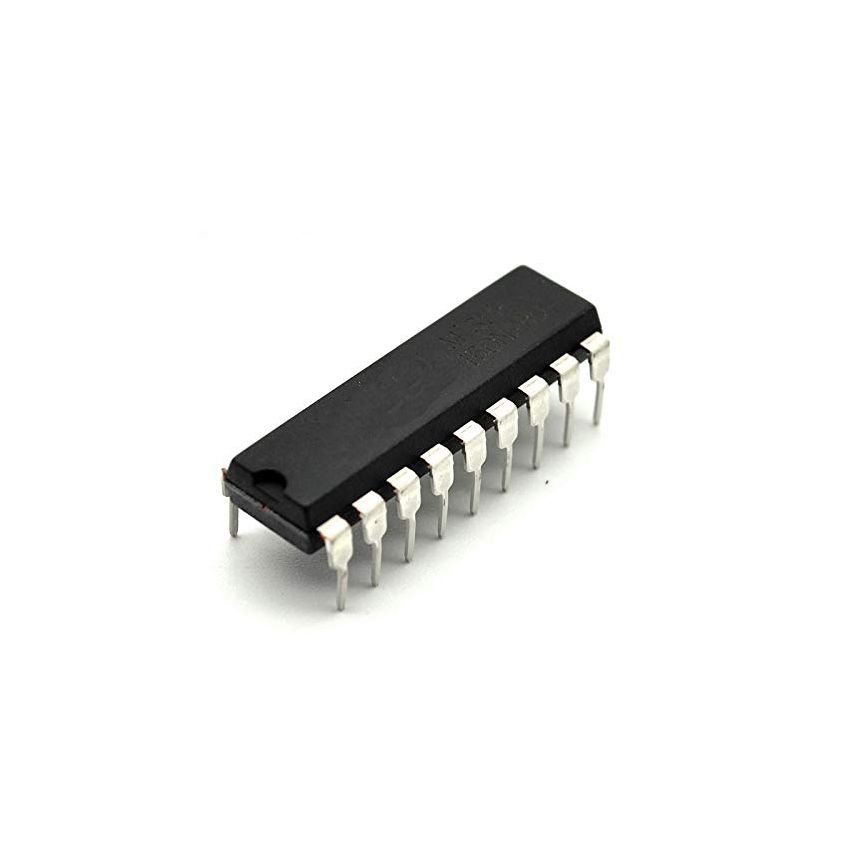

MCZ3001D, Deflection Output Driver IC, DIP-18 Package Type

The MCZ3001D is a horizontal deflection output driver IC manufactured by ON Semiconductor (formerly Motorola), designed specifically for CRT television and monitor applications. Housed in a standard DIP-18 through-hole package, it integrates the oscillator, driver stage, and protection circuitry into a single IC solution to simplify the CRT horizontal deflection circuit design.

Key Features:

• Designed for CRT horizontal deflection circuits
• Integrated horizontal driver with oscillator and power stage
• Built-in thermal and overcurrent protection
• Direct drive for output stage with low component count
• TTL compatible input
• Optimized for use in television and monitor circuits

Additional Specifications:

• Package Type: DIP-18
• IC type: Horizontal Deflection Output Driver
• Mounting Style: Through Hole
