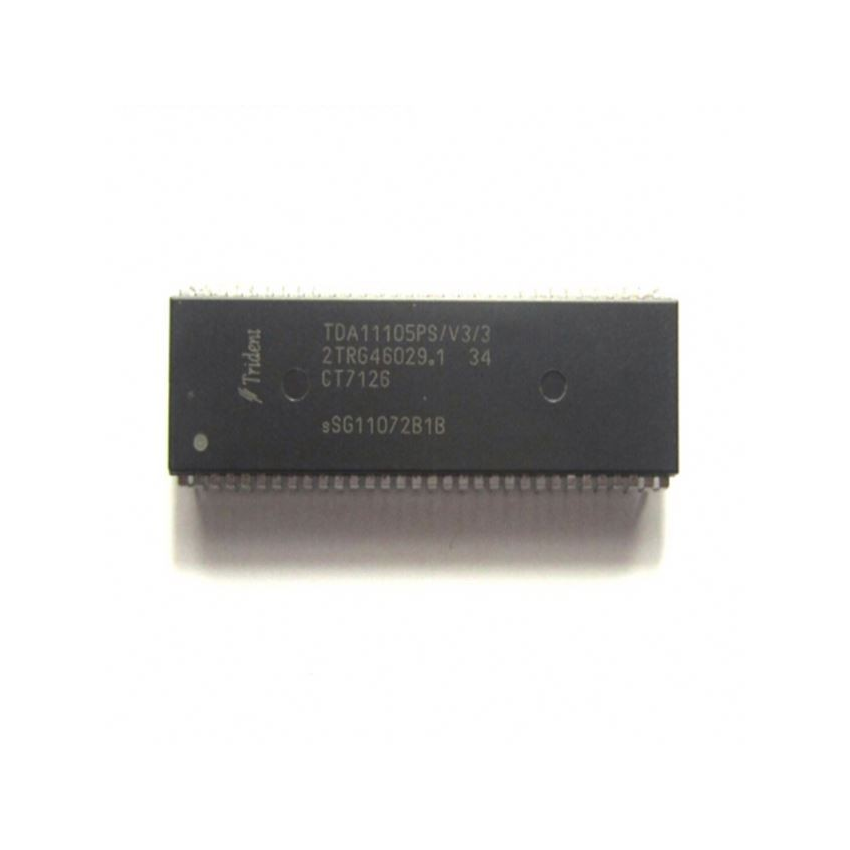

TDA11105PS, TV Signal Processor IC, DIP-64

The TDA11105PS is a highly integrated TV signal processor IC, designed for modern television applications. It features chroma decoding, sync processing, and audio signal handling, eliminating the need for multiple discrete components.

The IC provides multi-system tuner compatibility, working with Frequency Synthesis (FS) and Voltage Synthesis (VS) tuners, making it suitable for various TV designs worldwide. Additionally, it features a custom logo display function, allowing brands to personalize startup or standby screens.

With built-in enhancements like a perpetual calendar, embedded games, and screen adjustments, the TDA11105PS offers an all-in-one solution for TV system designers. The advanced image processing features, including coring and black extension, ensure high-quality video performance.

Packaged in a DIP-64 form factor, the TDA11105PS is designed for through-hole PCB mounting, providing reliability and durability for television manufacturing. Its versatile functionality and integration make it a cost-effective solution for CRT and other television display systems.

• Integrated TV Signal Processing: Supports chroma, sync, and audio processing for high-performance television applications.
• Multi-System Compatibility: Works with FS (Frequency Synthesis) and VS (Voltage Synthesis) tuners, ensuring broad application support.
• Custom Logo Display Feature: Allows users to edit and display a startup logo or a standby screen when no signal is present.
• Built-in User Functions: Includes a perpetual calendar, built-in games, and adjustable screen settings (horizontal/vertical adjustments).
• Enhanced Picture Quality: Advanced coring, black extension, and contrast adjustment features improve image clarity.
• DIP-64 Package for Easy Integration: Through-hole mounting for robust and stable PCB design in television systems.
