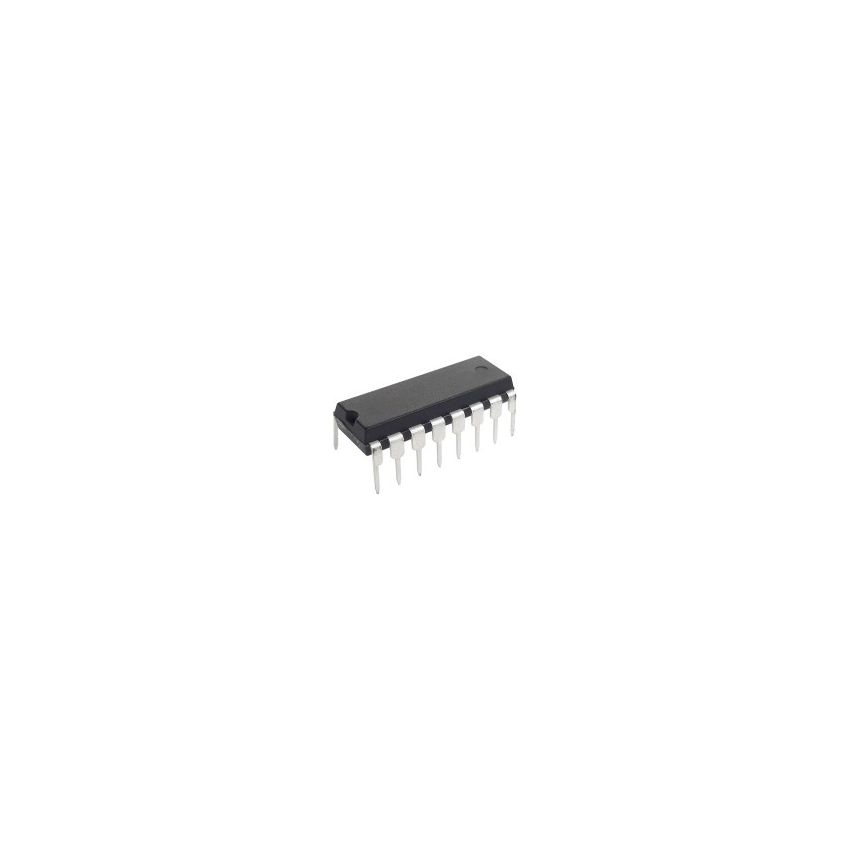

SG3525A,PWM Controller IC for Switching Power Supplies,DIP-16

The SG3525A-DIP is a versatile PWM controller IC designed to enhance the efficiency and reliability of switching power supplies, DC-DC converters, and motor control systems. Featuring precision pulse-width modulation and an adjustable dead time, this IC delivers exceptional performance in both high- and low-power applications.

The SG3525A integrates a wide array of protection features, including overcurrent and thermal shutdown, ensuring robust operation under various conditions. Its compact DIP-16 package makes it easy to implement in through-hole designs, and the wide supply voltage range offers flexibility in diverse configurations. With a high output drive capability, the SG3525A is capable of directly driving power MOSFETs or BJTs, simplifying system design.

• Precision PWM Control: Provides accurate and stable pulse-width modulation for power supply and motor control applications.
• Wide Supply Voltage Range: Operates between 8V and 35V, supporting various input configurations.
• Adjustable Dead Time: Allows flexibility in controlling switching dynamics for improved efficiency.
• Built-In Protection Features: Includes overcurrent, overvoltage, and thermal shutdown for safe operation.
• DIP-16 Package: Compact and robust through-hole design, ideal for prototyping and final designs.
• High Output Drive Capability: Supports driving power MOSFETs or BJTs directly, with up to 500mA peak current.
