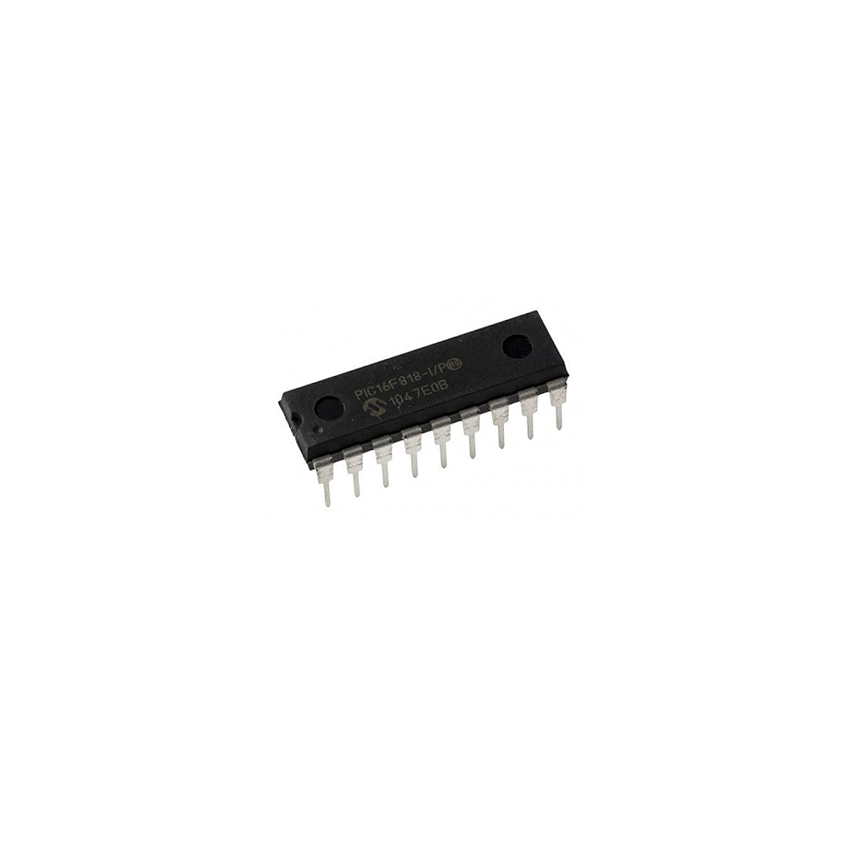

The PIC16F818-I/P is a versatile 8-bit microcontroller from Microchip Technology, designed for a wide range of embedded applications. Operating at speeds up to 20MHz, it features a Reduced Instruction Set Computing (RISC) architecture, allowing for efficient code execution with most instructions completing in a single cycle.
Equipped with 1.75KB of Flash program memory and 128 bytes of SRAM, the PIC16F818-I/P provides sufficient resources for both program storage and data manipulation. Its 5-channel, 10-bit Analog-to-Digital Converter (ADC) facilitates accurate analog signal processing, making it ideal for sensor-based applications.
The microcontroller offers 16 general-purpose I/O pins, each with individual direction control, and supports high sink/source current up to 25 mA, enabling direct interfacing with LEDs and other peripherals. Additional features include multiple timers, a Capture/Compare/PWM (CCP) module, and a Synchronous Serial Port (SSP) supporting SPI and I²C communication protocols.
Designed with power efficiency in mind, the PIC16F818-I/P supports various power-managed modes, including Sleep and Idle, to reduce energy consumption in battery-powered applications. Its operating voltage range of 2.0V to 5.5V provides flexibility for different power supply configurations.
Packaged in an 18-pin PDIP form factor, the PIC16F818-I/P is suitable for through-hole mounting, facilitating easy integration into a variety of designs. This microcontroller is well-suited for applications such as industrial control systems, consumer electronics, and data acquisition systems.
Key Features :- High-Performance RISC CPU: Executes most instructions in a single cycle, with only 35 single-word instructions to learn.
- 1.75KB Flash Program Memory: Provides ample space for code storage, supporting up to 100,000 erase/write cycles.
- 128 Bytes of Data Memory: Includes 128 bytes of SRAM for efficient data handling.
- 5-Channel, 10-Bit ADC: Enables precise analog-to-digital conversions for sensor interfacing.
- Enhanced Peripheral Features: Offers 16 I/O pins with individual direction control, high current sink/source capability (25 mA), and multiple timers.
- Power-Managed Modes: Supports various power-saving modes, including Sleep and Idle, to optimize energy consumption.
