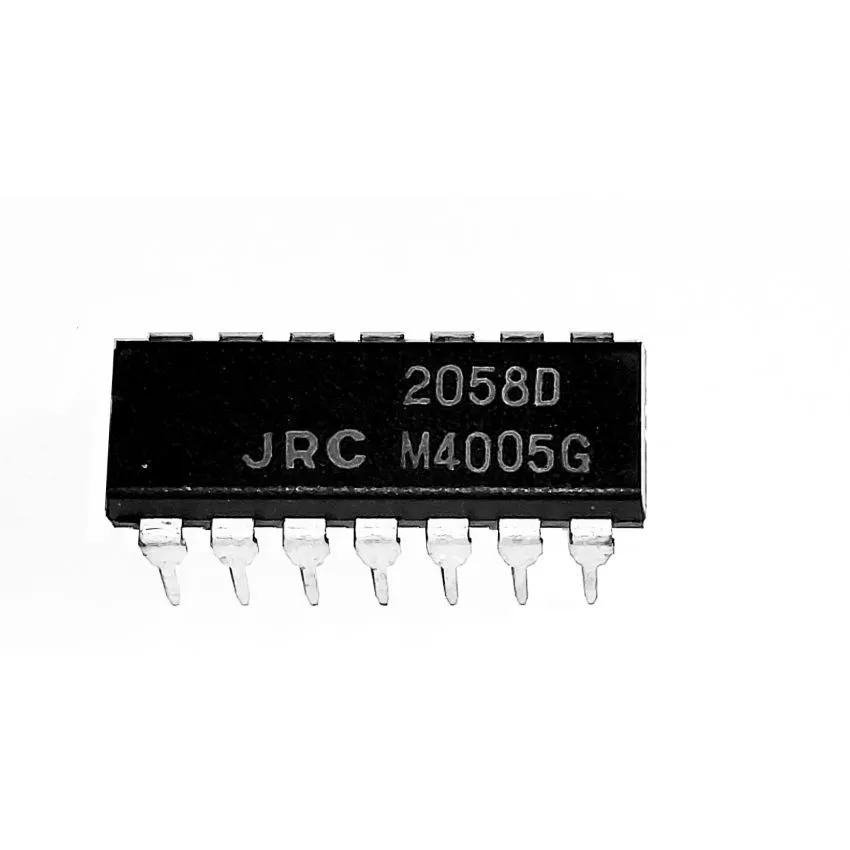

NJM2058D ,Quad Operational Amplifier, 100 dB CMRR, 18V

The NJM2058D is a quad high-gain operational amplifier designed for a wide range of general-purpose applications. Built with advanced bipolar technology, this amplifier offers excellent performance with low noise and high precision. With a common-mode rejection ratio (CMRR) of up to 100 dB, it ensures stable operation even in noisy environments.

The device can operate with a wide supply voltage range of ±4V to ±18V, making it suitable for various analog circuits. Additionally, it features internal compensation and is constructed on a single silicon chip, ensuring reliability and consistent performance. Whether used in audio equipment, signal processing, or instrumentation, the NJM2058D delivers precision and stability in demanding applications.

Key Features :

• High Common Mode Rejection Ratio (CMRR): 100 dB for superior noise rejection.
• Wide Operating Voltage Range: Supports ±4V to ±18V, ensuring compatibility with various power supplies.
• Low Input Offset Voltage: Only 6mV typical, improving precision in analog circuits.
• Low Input Bias Current: 200nA, ideal for high-impedance applications.
• High Gain Bandwidth Product (GBP): 3 MHz, suitable for high-frequency applications.
• Low Total Harmonic Distortion (THD): Ensures high fidelity in audio and signal processing.
