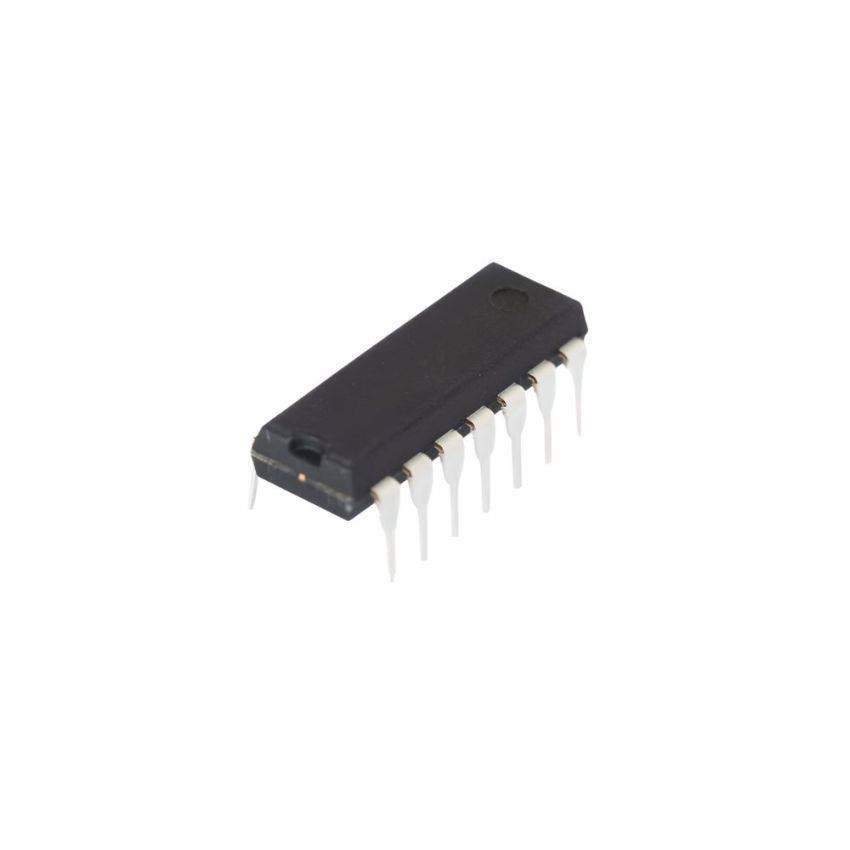

NE529N,High-Speed Voltage Comparator,DIP-14

The NE529N is a high-speed voltage comparator designed for applications requiring rapid and precise signal processing. Built using Schottky diode technology, it combines fast TTL logic gates with a precision linear amplifier, resulting in a propagation delay of just 10ns. Its wide common-mode voltage range and low offset voltage make it an excellent choice for high-speed analog-to-digital converters, memory sensing, and optical data coupling.

Encased in a DIP-14 package, the NE529N supports both TTL and ECL-compatible outputs, offering flexibility for a wide range of interfacing requirements. Its robust design ensures reliable operation in industrial, automotive, and consumer electronic applications.

• Ultra-Fast Operation: 10ns propagation delay for high-speed applications.
• TTL and ECL Compatible: Interfaces seamlessly with logic families.
• Complementary Outputs: Provides two outputs for versatile design flexibility.
• Wide Common-Mode Voltage Range: Operates effectively with a wide differential voltage range.
• Compact DIP-14 Package: Ideal for through-hole designs and prototyping.
• Low Offset Voltage: Ensures precise voltage comparison in sensitive applications.
