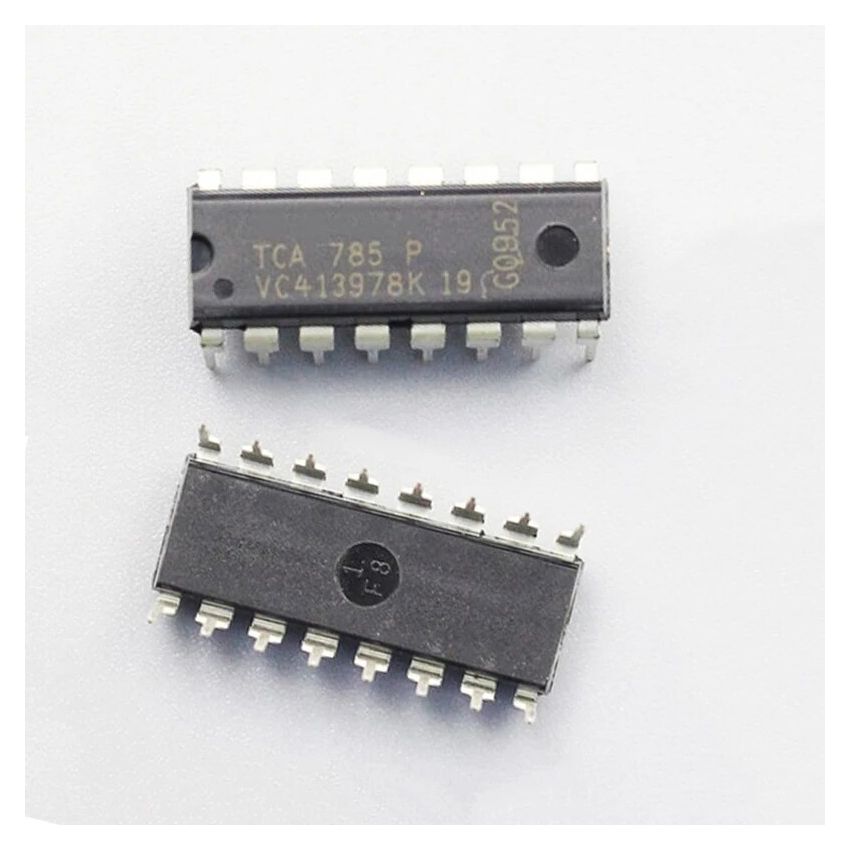

TCA785P ,Phase Control IC - DIP-16, 250mA Output

The TCA785P is a versatile Phase Control IC specifically designed for managing thyristors, triacs, and transistors in various power control applications. Packaged in a DIP-16 form, this IC is capable of precise control within a phase angle range of 0° to 180°, allowing it to regulate AC controllers, converter circuits, and three-phase current controllers.

With an output current of 250mA and wide operational temperature support, it ensures efficient performance in both industrial and household applications. The IC integrates a reliable zero-crossing detection mechanism and has a large ramp current range, enhancing its usability across different setups.

Key Features :

• Zero Crossing Detection: Ensures precise synchronization with AC signals for smooth control.
• Wide Temperature Range: Operates effectively from -25°C to 85°C, suitable for diverse environments.
• DIP-16 Package: Easy to integrate into standard through-hole PCB designs.
• Output Current Capacity: Supports up to 250mA, making it ideal for handling moderate loads.
• Phase Control: Allows adjustment of the phase angle between 0° to 180° for efficient power regulation.
• Multiple Application Support: Suitable for thyristor, triac, and transistor-based circuits, including AC controllers and converters.
