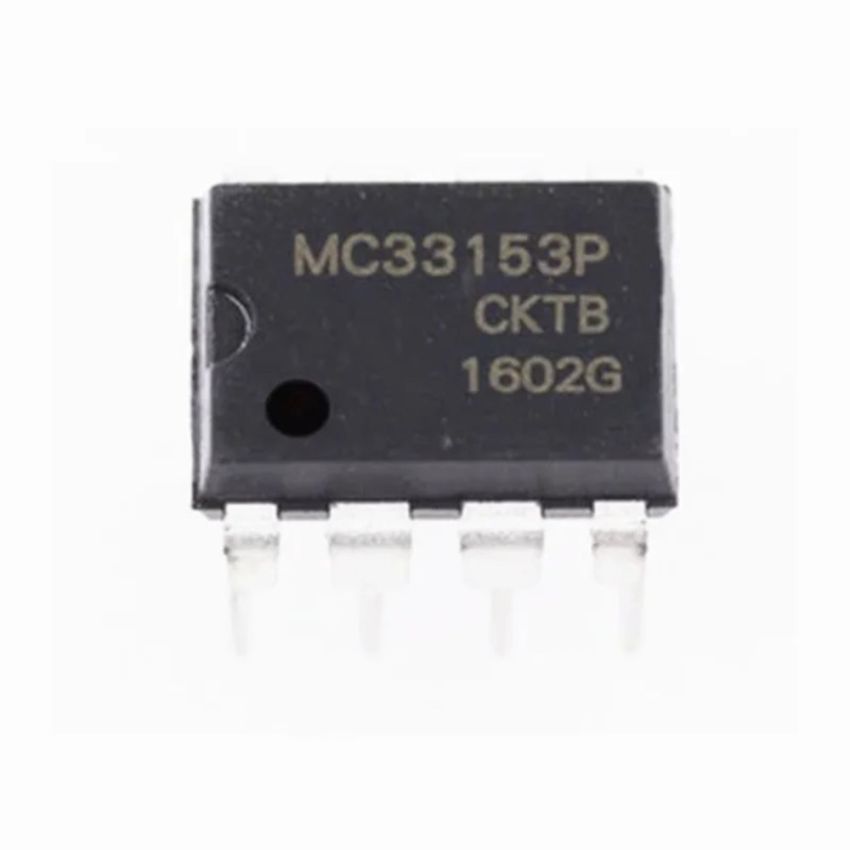

MC33153P, Single IGBT Gate Driver DIP-8 Package - 20V 1A Output

The MC33153P is a highly efficient IGBT gate driver IC, specifically designed for high-power applications, such as motor control, industrial power supplies, and uninterruptible power supplies (UPS). Featuring a 1A source and 2A sink output current, it provides robust protection with built-in fault and blanking features.

The IC includes undervoltage lockout (UVLO) and short-circuit protection, ensuring safe and reliable operation for high-performance IGBT or MOSFET switching systems. Packaged in an 8-pin DIP, it is ideal for easy integration in through-hole designs. The MC33153P provides a cost-effective solution for driving discrete or module IGBTs in demanding power systems.

Key Features :

• High current output stage: 1.0A source, 2.0A sink
• Protection circuits for overcurrent and short circuit
• Undervoltage lockout optimized for IGBT systems
• Negative gate drive capability
• 20V operating voltage with fault output and blanking/desaturation inputs
• Cost-effective gate drive for MOSFETs and bipolar transistors
