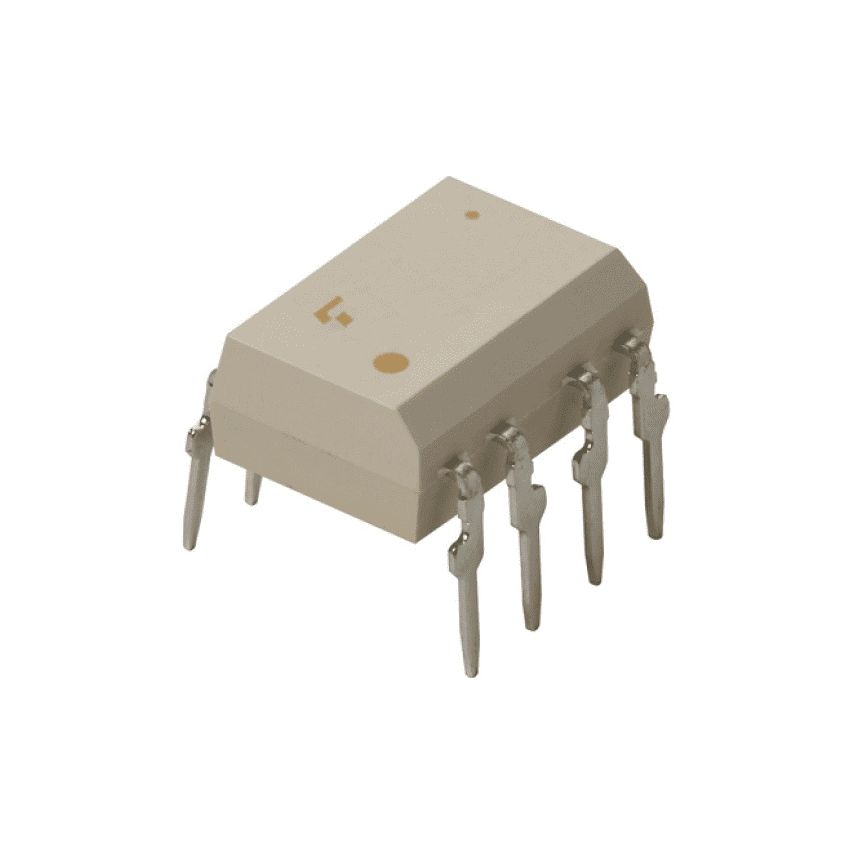

A7840 Isolation Amplifier DIP8 ±200mV Input 2500Vrms Isolation

The A7840 is a high-performance isolation amplifier, ideal for measuring small analog signals in high-voltage environments. Packaged in an industry-standard DIP-8 format, it offers 2500 Vrms isolation between input and output, protecting downstream circuitry and ensuring measurement integrity in noisy industrial systems.

Key Features:

• ±200 mV differential input range
• 2500 Vrms isolation voltage
• DIP-8 through-hole package
• Wide operating temperature: –40°C to +85°C
• High accuracy and low drift
• Designed for current shunt sensing and high-voltage monitoring

Additional Specifications:

• Package Type: DIP-8
• Common Mode Rejection Ratio (CMRR): 1000 V
• Rail to Rail: No
• Gain Bandwidth Product(GBP): 100 kHz
• Output Current: 11.56 mA
