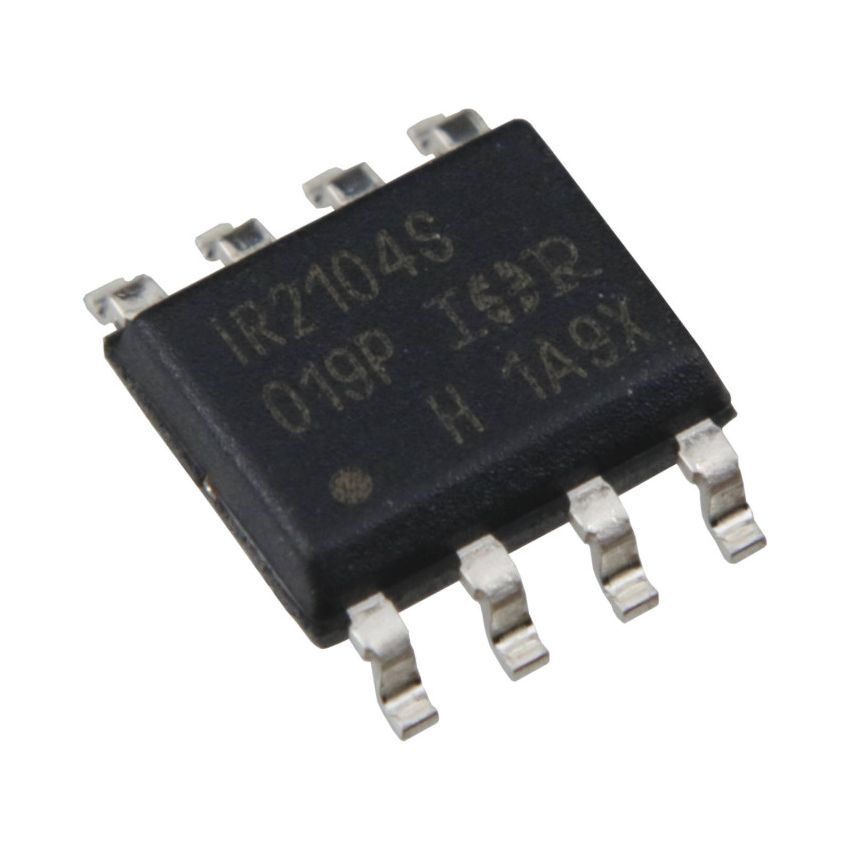

IR2104S,High-Speed MOSFET/IGBT Driver, 600V, 8-Pin,SMD

SKU
SCIx1125
Brand
In stock
Add to Wish List

Guarantee safe & secure checkout

The IR2104S - SMD is a high-voltage, high-speed MOSFET and IGBT driver designed to control high-side and low-side gate driver outputs with maximum efficiency. With an offset voltage rating of up to 600V, this driver is ideal for high-voltage power management systems that require fast switching speeds and robust protection mechanisms.

This driver provides 130mA sourcing and 270mA sinking current capabilities, enabling reliable control of MOSFETs or IGBTs in demanding power applications. The integrated undervoltage lockout ensures that the device operates only under proper voltage conditions, enhancing system safety and reliability. Additionally, the built-in dead-time control prevents cross-conduction and ensures safe switching between the high and low sides.

The IR2104S is packaged in a compact 8-pin SOIC package, making it ideal for surface-mount designs with limited board space. Its high-speed operation, along with advanced protection features, makes it a great choice for industrial power converters, motor drives, and solar inverters.

Key Features :
  • High Voltage MOSFET/IGBT Driver: Supports high-side and low-side gate driver outputs with a maximum offset voltage of 600V.
  • High-Speed Switching: Achieves fast switching speeds with turn-on/off times of 680ns and 150ns, respectively.
  • Output Current: 130mA sourcing and 270mA sinking current capacity for efficient gate drive.
  • Undervoltage Lockout: Integrated protection feature that prevents operation under insufficient voltage conditions.
  • Dead-Time Control: Built-in 520ns dead-time to prevent cross-conduction, ensuring safe and reliable operation.
  • Compact 8-Pin SOIC Package: Suitable for surface-mount designs with space constraints.
More Information
Brand Generic
GTIN 1,
IC type N/A
