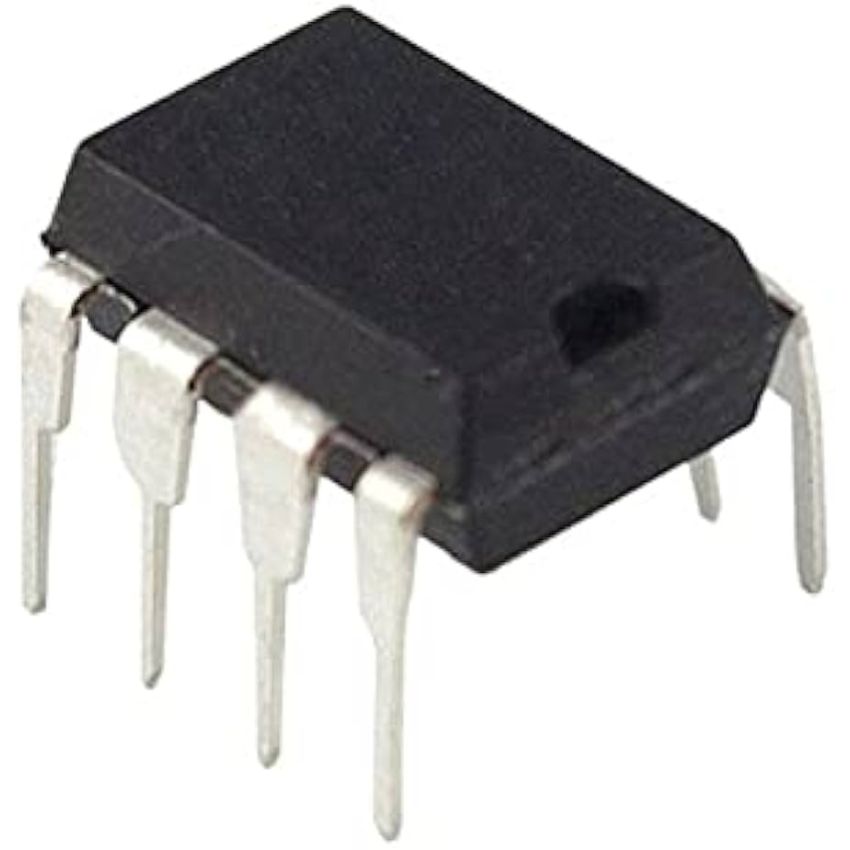

NJM2245D ,3-Input Video Switch with 6dB Amplifier - DIP8 Package

SKU
SCIx1105
Part Number
NJM2245D
In stock
Add to Wish List

Guarantee safe & secure checkout

The NJM2245D is a high-performance, three-input video switch designed for audio-visual applications such as VCRs and AV-TV Video Disc Players. This integrated video switch offers seamless selection of video signals from three input sources, with a 6dB amplifier for signal strength consistency. Its wide operating voltage range from 8.5V to 13V ensures compatibility with a variety of power supplies, while the internal 6dB amplifier boosts output for optimal clarity.

With low crosstalk at 65dB (at 4.43MHz), and a wide frequency range bandwidth of up to 5MHz (1Vp-p Input), this video switch supports high-quality signal transmission with minimal interference. The NJM2245D features compact DIP8 packaging, making it ideal for integration into compact systems.

Key Features :

  • 3-Input, 1-Output Configuration - Allows selection between three input signals, providing flexible video source switching.
  • Built-in 6dB Amplifier - Enhances signal quality for consistent output across varied input sources.
  • Wide Operating Voltage Range - Operates effectively between 8.5V and 13V for versatile applications.
  • Low Crosstalk - Provides 65dB crosstalk isolation at 4.43MHz, ensuring minimal interference between channels.
  • 5MHz Frequency Range - Supports high-quality video signal bandwidth up to 5MHz for clear video transmission.
  • Compact DIP8 Package - Easy to integrate into space-constrained AV systems.
More Information
Brand New Japan Radio
GTIN 1,
IC type N/A
