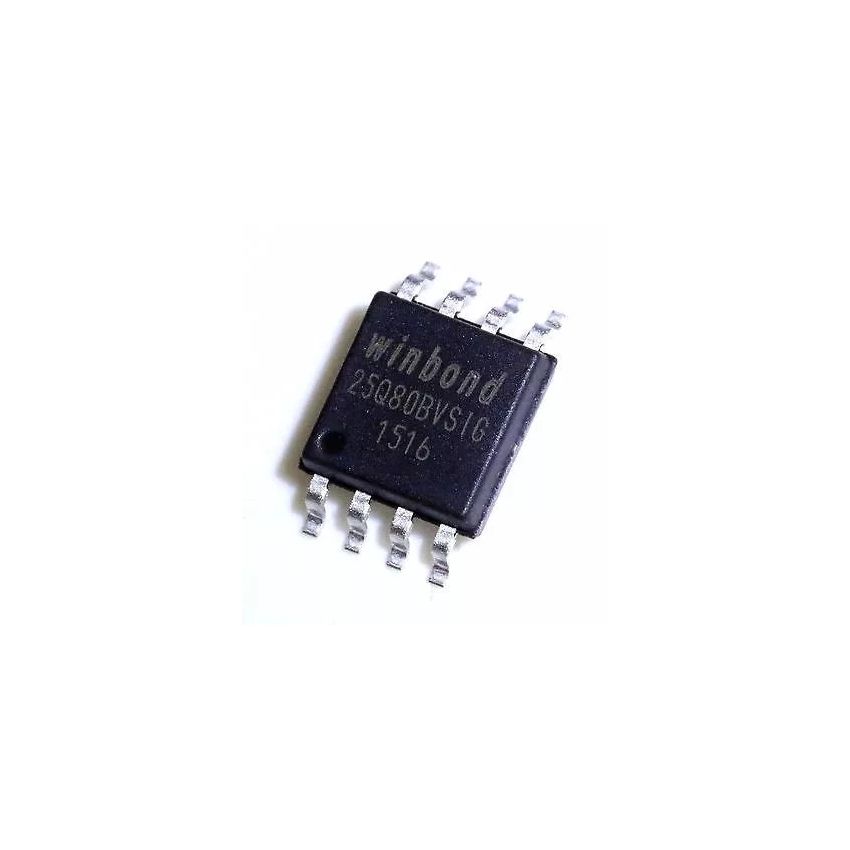

W25Q80BVSSIG, 8M-bit Serial Flash Memory, SPI Interface, SOIC-8

The W25Q80BVSSIG is an 8M-bit (1MB) Serial Flash Memory designed for high-performance embedded applications requiring non-volatile storage. Featuring a SPI, Dual SPI, and Quad SPI interface, this memory module allows fast data access and high transfer rates, making it ideal for code shadowing, executing in place (XIP), and firmware storage.

The high-speed SPI interface operates at up to 104MHz, with continuous read throughput of 50MB/s, significantly outperforming conventional serial flash devices. It supports flexible erase and program operations, including 4KB sector erase, 32KB and 64KB block erase, and full chip erase, allowing efficient data management.

Designed for low power consumption, the W25Q80BV operates within 2.7V to 3.6V, making it ideal for battery-powered systems and low-energy embedded devices. It also features deep power-down mode, which reduces standby current to less than 1µA.

With an industry-standard SOIC-8, WSON-8, and PDIP-8 packaging, the W25Q80BVSSIG offers easy integration into consumer electronics, automotive applications, industrial automation, and IoT devices. It provides 100,000 erase/program cycles per sector and ensures data retention for over 20 years.

• 8M-bit Serial Flash Memory: Organized as 1M × 8-bit, suitable for high-performance embedded applications.
• SPI, Dual, and Quad I/O Support: Operates in Standard SPI, Dual SPI, and Quad SPI modes for flexible data access.
• High-Speed Operation: Supports clock frequencies up to 104MHz with continuous read speeds up to 50MB/s.
• Flexible Erase and Write Options: Supports sector erase (4KB), block erase (32KB/64KB), and full chip erase functions.
• Low Power Consumption: Operates within 2.7V to 3.6V supply range, with ultra-low standby and deep power-down modes.
• Compact and Industry-Standard Packaging: Available in SOIC-8, WSON, and PDIP packages, making it compatible with various PCB designs.
