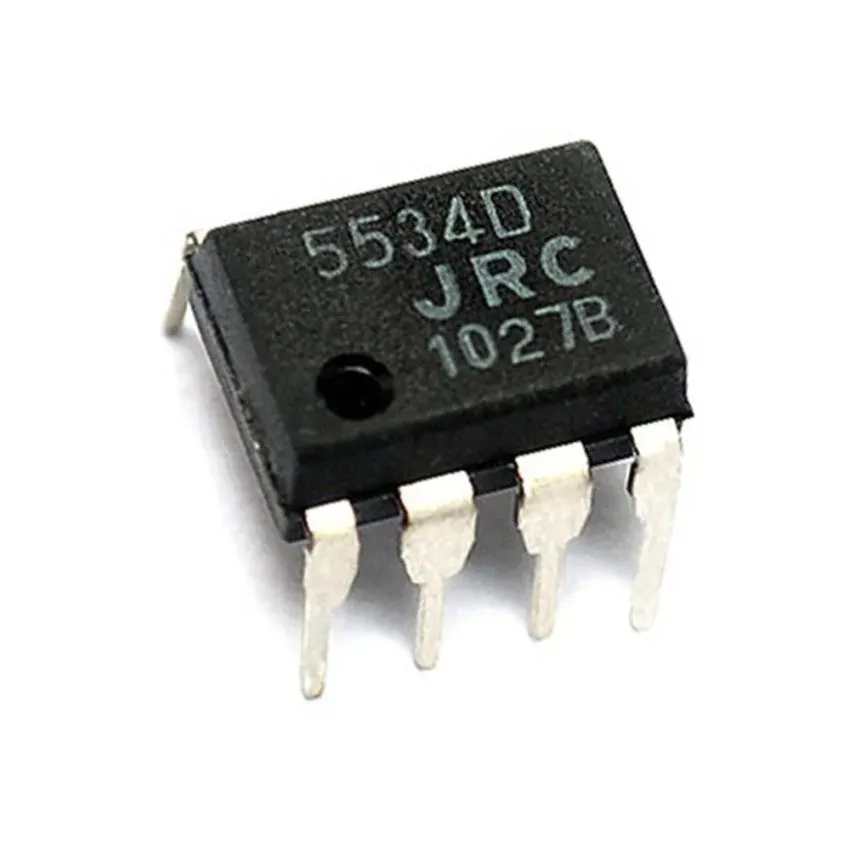

NJM5534D ,Operational Amplifier, Low Noise, High Gain Bandwidth - DIP-8

SKU
SCIx1019
Part Number
NJM5534D
In stock
Add to Wish List

Guarantee safe & secure checkout

The NJM5534D is a high-performance, low-noise operational amplifier designed for audio signal processing and precision applications. It features a wide operating voltage range from ±3V to ±22V and a high gain bandwidth product of 10 MHz, making it ideal for applications requiring low noise and high output drive capabilities.

The device is designed using specially engineered low-noise transistors to ensure superior noise performance, with an equivalent input noise voltage of 3.3 nV/√Hz at 1 kHz. With a slew rate of 13 V/µs and a power bandwidth of 200 kHz, this op-amp is perfect for applications in audio pre-amplifiers, equalizers, and instrumentation systems. The NJM5534D comes in a DIP-8 package, making it easy to integrate into existing designs, especially where compact and efficient performance is required.

Key Features :

  • High Gain Bandwidth Product: 10 MHz for superior frequency response in precision applications.
  • Low Noise Performance: Equivalent input noise voltage of 3.3 nV/√Hz at 1 kHz for clear audio signal processing.
  • High Slew Rate: 13 V/µs ensures rapid response to input changes.
  • Wide Operating Voltage Range: Supports ±3V to ±22V for versatile design options.
  • Low Total Harmonic Distortion (THD): Maintains signal integrity with minimal distortion.
  • DIP-8 Package: Compact and easy to integrate into a variety of circuit boards.
More Information
Brand New Japan Radio
GTIN 1,
IC type N/A
