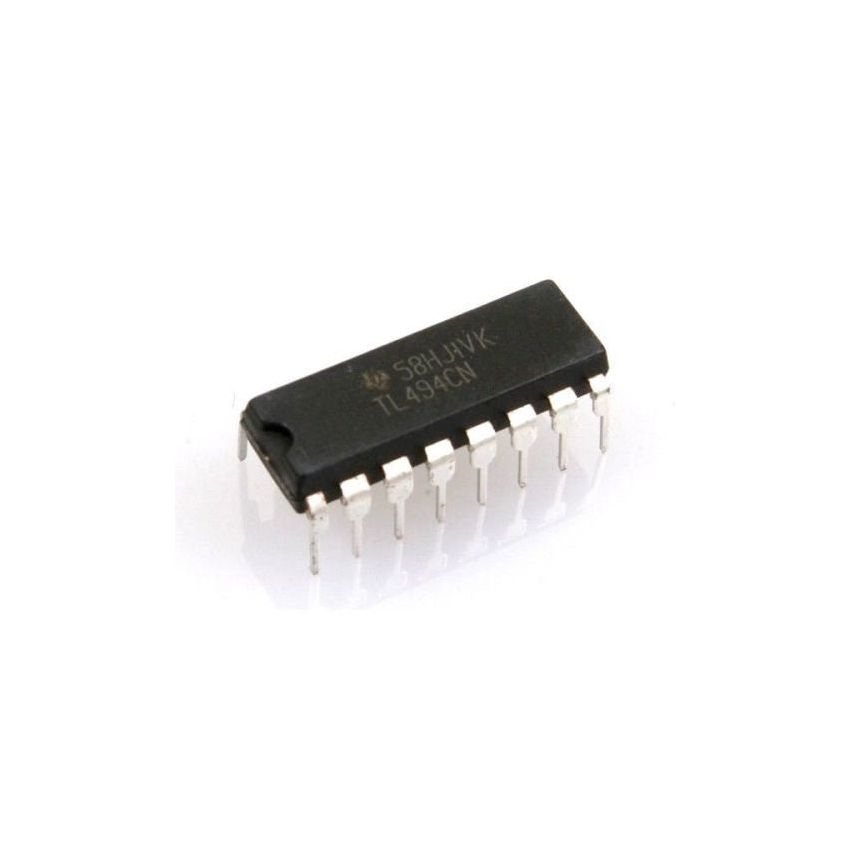

TL494CN-DIP PWM Controller, 7-40V, Dual Output Transistors

SKU
SCIx0968
Brand
Part Number
TL494CN
In stock
Add to Wish List

Guarantee safe & secure checkout

The TL494CN-DIP is a versatile Pulse-Width Modulation (PWM) control circuit designed for use in DC-to-DC converters, switching power supplies, and other applications requiring efficient power management. With its dual-output transistor design, it can operate in push-pull or single-ended configurations, allowing for flexibility in various designs.

The TL494 offers a highly stable 5V reference, wide input voltage range, and built-in error amplifiers, making it ideal for precision power control in devices like power supplies, solar inverters, and motor controllers.

Key Features :

  • Dual PWM control output for push-pull or single-ended operation.
  • Operates over a wide supply voltage range from 7V to 40V.
  • Integrated 5V reference with 5% tolerance for stable operation.
  • Two independent error amplifiers for accurate voltage regulation.
  • Adjustable dead-time control for optimized efficiency.
  • Built-in under-voltage lockout (UVLO) and thermal protection for enhanced reliability.
More Information
Brand Generic
GTIN 1,
IC type N/A
