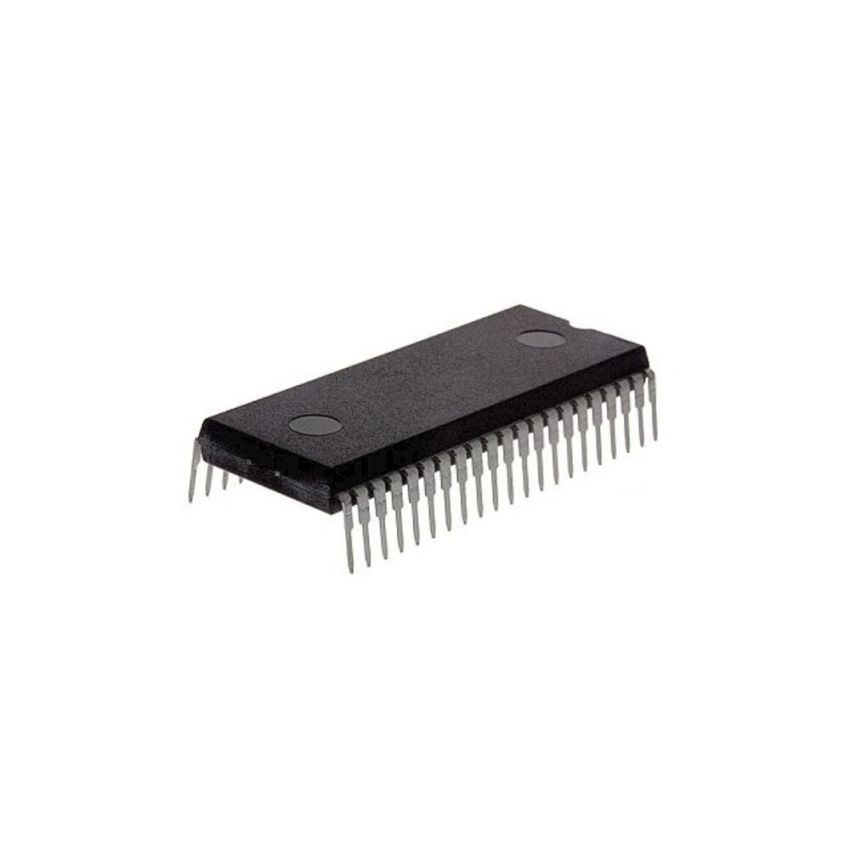

HA12203NT, Audio Signal Processor for Cassette Decks, DIP-42

The HA12203NT is a high-performance audio signal processor IC, designed specifically for cassette deck applications. It integrates Dolby B-Type noise reduction, a music sensor system, a recording equalizer, and electronic control switching, all in a single IC. This high level of integration significantly reduces the need for external components, resulting in a compact, cost-effective design.

With six built-in recording equalizer settings, the HA12203NT allows precise audio adjustments, ensuring clear and high-quality recordings. Its music sensor system enables track detection, making automatic music search functions possible. Additionally, the electronic control switching capability facilitates smooth operation for recording, playback, and noise reduction activation.

Packaged in a DIP-42 form factor, the HA12203NT is designed for through-hole mounting, making it an ideal solution for stereo cassette decks, audio enhancement systems, and home Hi-Fi components. With its low power consumption and stable performance, this IC is a versatile and essential component in cassette recording technology.

• Integrated Dolby B-Type Noise Reduction: Enhances audio playback and recording quality by reducing tape hiss and background noise.
• Built-in Recording Equalizer: Offers six selectable frequency characteristics, minimizing external component requirements and ensuring accurate audio tuning.
• Music Sensor System: Facilitates track detection, enabling automatic music search functionality for improved user experience.
• Electronic Control Switching: Supports electronic control of Dolby NR, recording/playback mode selection, and equalizer settings, simplifying design complexity.
• Bias Oscillator Control: Includes a control switch for the bias oscillator, essential for optimal recording performance on cassette decks.
• DIP-42 Package for Easy Integration: Through-hole mounting for stable PCB assembly in cassette deck and audio processing systems.
